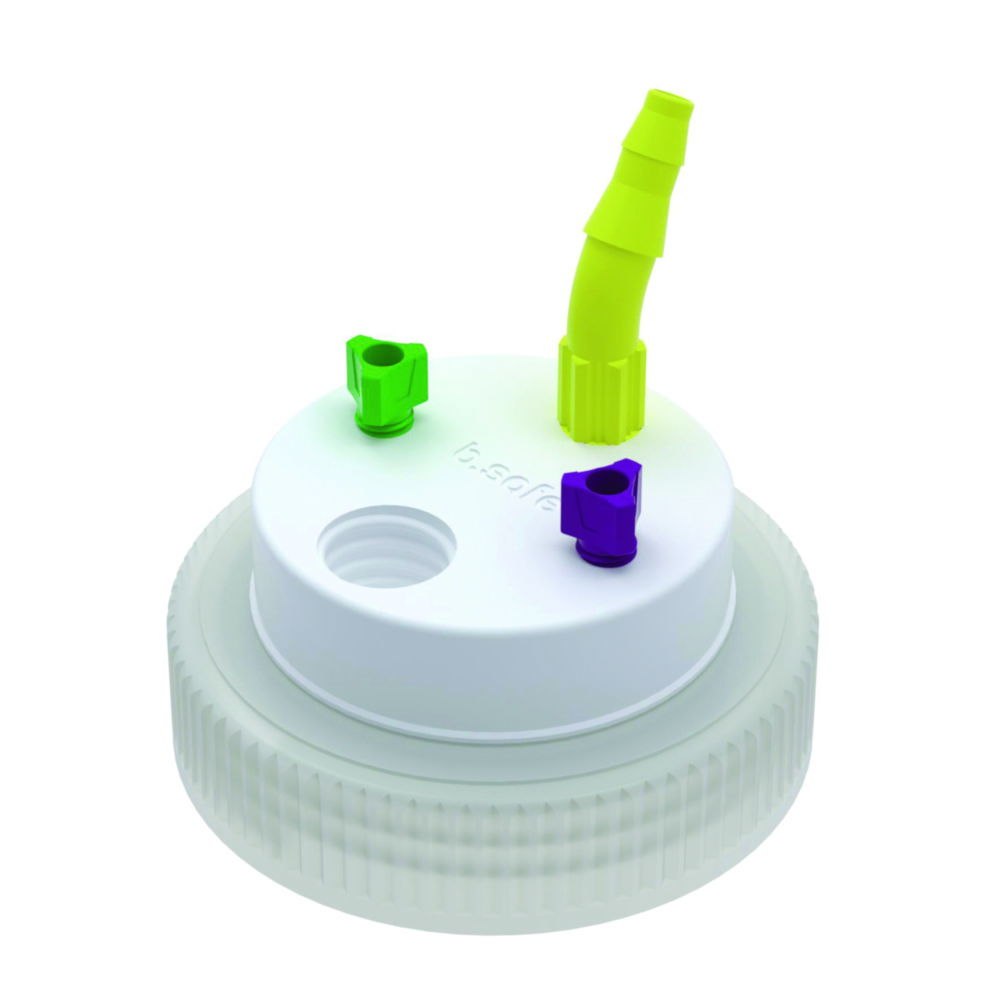

b.safe Waste Caps B 63, PE
Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).
Scope of supply:
Fittings (UNF 1/4“), blind fittings (UNF 1/4“), hose olive (NPT 1/8″)
Toote variatsioonid
| Hose connections | Material | No. of blind plugs | No. of fittings | No. of olives | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | PE | 2 | 3 x 1,6/ 2,2/ 3,2 mm | 1 | 4.681 603 | B 63 | 1.00 | ||
| 1 | PE | 1 | 2 x 1,6/ 2,2/ 3,2 mm | 1 | 4.681 602 | B 63 | 1.00 | ||
| - | PE | 2 | 3 x 1,6/ 2,2/ 3,2 mm | 109431 | 4.681 601 | B 63 | 1.00 |
