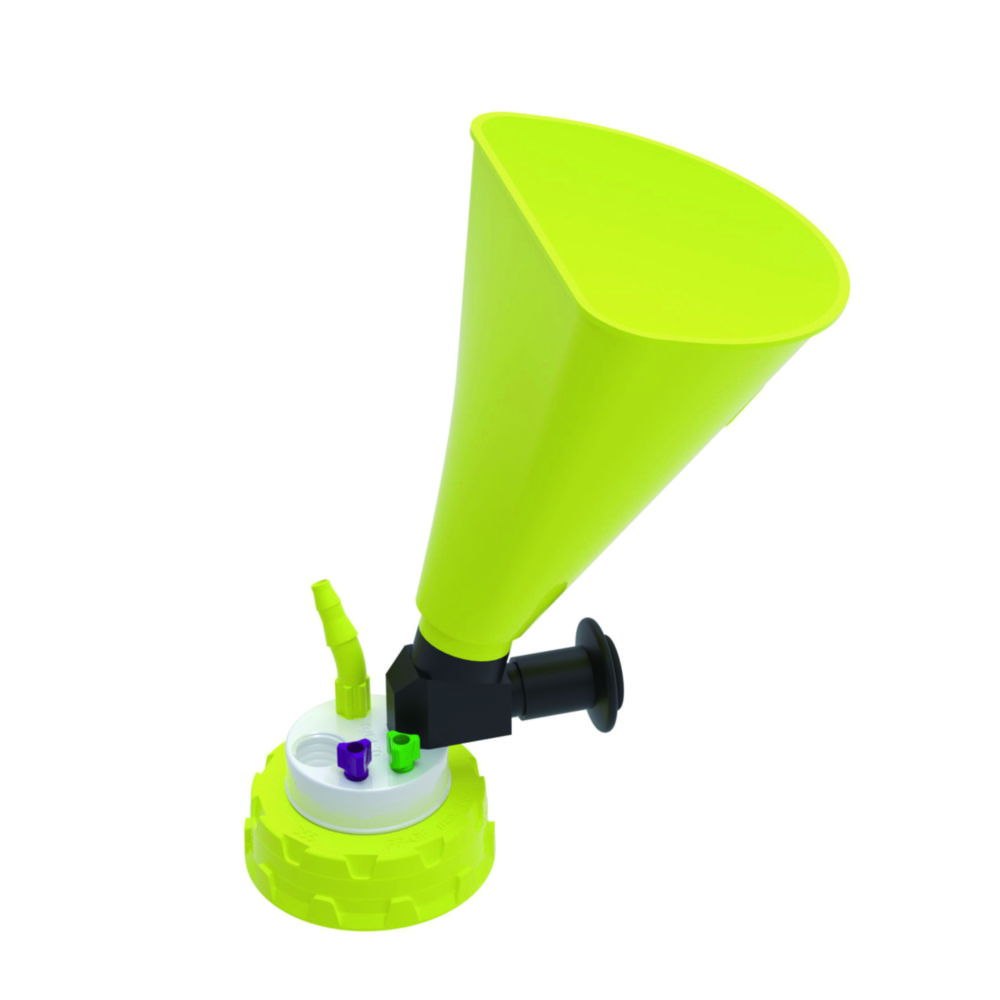

b.safe Waste Caps S 55, PP, with filling funnel

Screw caps with free movable insert made of PTFE. Depending on the version, for connecting capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8 mm. A b.safe exhaust air filter can be screwed into the thread GL 14 (not included in the scope of supply).
The filling funnel made of PP has an integrated stopcock. The stopcock with grip is opened by turning the grip and the grip position shows if the stopcock is closed. The automatic stopcock is opened by pushing the grip and closes automatically if the grip is loosened.

Scope of supply:
Filling funnel (automatic stopcock/ stopcock with grip), fittings (UNF 1/4“), blind fitting (UNF 1/4“), hose olive (NPT 1/8″)

Toote variatsioonid

<th class='No. of
olives sortable asc'>No. of
olives<td data-title='No. of
olives'>1<td data-title='No. of
Hose connectionsMaterialNo. of blind plugsNo. of fittingsCatalog numberThreadPKKogus
1PP12 x 1,6/ 2,2/ 3,2 mm4.681 594S 551.00
1PP12 x 1,6/ 2,2/ 3,2 mm4.681 593S 551.00
