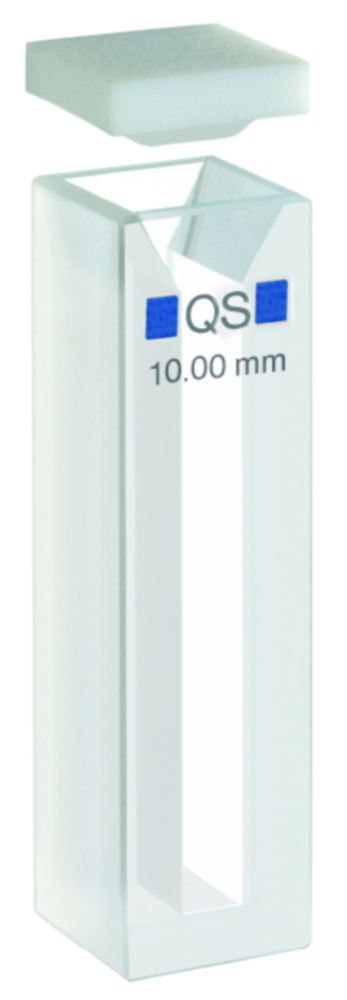

Cells for Absorption Measurement, UV-range
Wavelength Range: 200nm – 2500 nm. Optical material: Quartz glass High Performance
Toote variatsioonid
| Type | Description | internal width (mm) / aperture (mm x mm/Ø) | External dimensions (W x D x H) mm | Path length mm | Capacity µl | Centre height mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 45 | 10 | 500 | 15.2 | 6.076 641 | 1.00 | ||
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 45 | 10 | 500 | 15.2 | 6.084 722 | 1.00 | ||
| demountable | with loose sheets of glazing | 9 | 12.5 x 2.5 x 45 | 0.01 ±0.003 | - | - | 6.201 271 | 1.00 | ||
| semi-micro* | PTFE stopper *** | 4 | 12.5 x 12.5 x 49.5 | 10 | 1500 | - | 6.080 235 | 1.00 | ||
| demountable | with loose sheets of glazing | 9 | 12.5 x 3 x 45 | 0.5 ±0.010 | - | - | 6.203 069 | 1.00 | ||
| demountable | with loose sheets of glazing | 9 | 12.5 x 2.6 x 45 | 0.1 ±0.005 | - | - | 6.204 502 | 1.00 | ||
| demountable | with loose sheets of glazing | 9 | 12.5 x 2.7 x 45 | 0.2 ±0.005 | - | - | 6.201 331 | 1.00 | ||
| semi-micro* | Screw cap | 4 | 12.5 x 12.5 x 56 | 10 | 1400 | - | 6.076 639 | 1.00 | ||
| semi-micro* | PTFE lid * | 4 | 12.5 x 12.5 x 45 | 10 | 1000 | 15.2 | 6.800 224 | 1.00 | ||
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 40 | 10 | 400 | - | 9.144 385 | 1.00 | ||
| macro | Screw cap | 9.5 | 12.5 x 12.5 x 56 | 10 | 3500 | - | 6.801 219 | 1.00 | ||
| semi-micro* | PTFE stopper *** | 4 | 12.5 x 12.5 x 46 | 10 | 1400 | - | 9.144 730 | 1.00 | ||
| macro | Pipe-Ø 8mm, nozzle length 80 mm | 9.5 | 12.5 x 12.5 x 40 | 10 | 3500 | - | 6.222 584 | 1.00 | ||
| semi-micro* | PTFE lid * | 4 | 12.5 x 52.5 x 45 | 50 | 7000 | - | 9.144 465 | 1.00 | ||
| semi-micro* | PTFE lid * | 4 | 12.5 x 12.5 x 45 | 10 | 1000 | 15.2 | 6.250 017 | 1.00 | ||
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 45 | 10 | 700 | - | 9.144 756 | 1.00 | ||
| - | PTFE lid * | 4 | 12,5 x 12,5 x 45 | 10 | 1500 | 20 | 6.088 293 | 1.00 | ||
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 45 | 10 | 700 | - | 9.144 751 | 1.00 | ||
| micro | PTFE lid * | 2 | 12.5 x 12.5 x 40 | 10 | 400 | - | 9.144 758 | 1.00 | ||
| semi-micro* | PTFE lid * | 4 | 12.5 x 12.5 x 45 | 10 | 1400 | - | 9.144 460 | 1.00 | ||
| semi-micro* | PTFE lid * | 4 | 12.5 x 12.5 x 45 | 10 | 1400 | - | 9.144 490 | 1.00 | ||
| semi-micro* | PTFE stopper *** | 4 | 12.5 x 12.5 x 46 | 10 | 1400 | - | 9.144 372 | 1.00 | ||
| ultramicro | PE stopper | - | 12.5 x 12.5 x 45 | 10 | 20 M | 8.5 | 9.144 103 | 1.00 |
