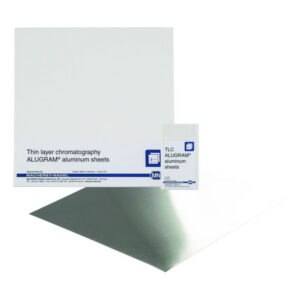

Cellulose MN 300, TLC-ready-to-use plates cellulose coated
The primary field of application is the partition chromatography of polar substances such as amino acids, carboxylic acids or carbohydrates. The TLC-plates are available as glass plates, POLYGRAM® polyester sheets and ALUGRAM® aluminium sheets.
- Fiber length (95 %) 2-20 µm
- Average degree of polymerization 400-500
- Specific surface according to Blaine 15000 cm2/g
- ≤ 20 ppm Fe, 6 ppm Cu, 7 ppm P
- Dichloromethane extract ≤ 0.25 %
- Residue on ignition at 850 °C ≤ 1500 ppm
- Available with or without fluorescent indicator (UV 254)
Toote variatsioonid
| Catalog number | PK | Dimensions (WxL) | Film thickness | Length | Material | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 4.004 836 | 25.00 | 200 x 200 mm | 250 µm | 200 mm | Glass | CEL 300-25 | 200 mm | ||

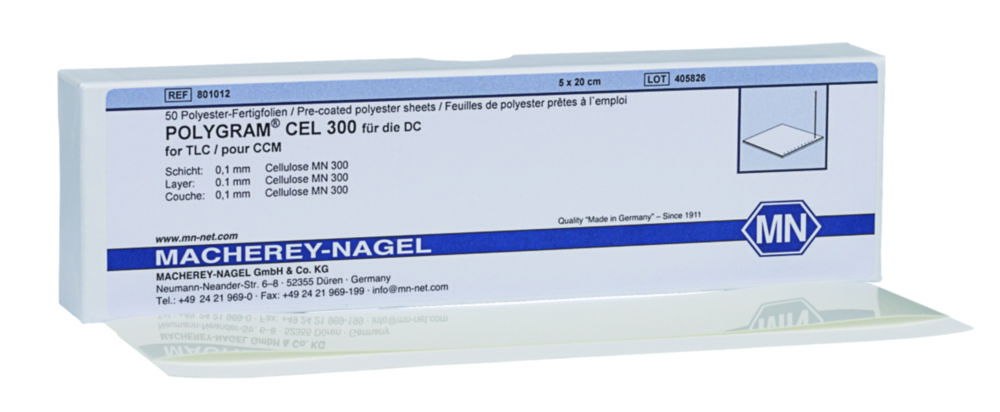

| 7.053 700 | 50.00 | 40 x 80 mm | 100 µm | 80 mm | Polyester | POLYGRAM®CEL 300 | 40 mm | ||
| 6.231 713 | 25.00 | 200 x 200 mm | 250 µm | 200 mm | Glass | CEL 300-25 UV254 | 200 mm | ||
| 4.004 839 | 20.00 | 200 x 200 mm | 500 µm | 200 mm | Glass | CEL 300-50 UV254 | 200 mm | ||
| 4.004 835 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Glass | CEL 300-10 | 200 mm | ||
| 4.005 049 | 50.00 | 40 x 80 mm | 100 µm | 80 mm | Aluminium | ALUGRAM®CEL 300 | 40 mm | ||
| 6.093 621 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Aluminium | ALUGRAM®CEL 300 | 200 mm | ||
| 7.053 593 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Polyester | POLYGRAM®CEL 300 | 200 mm | ||
| 4.005 050 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Aluminium | ALUGRAM®CEL 300 UV254 | 200 mm | ||
| 4.004 838 | 20.00 | 200 x 200 mm | 500 µm | 200 mm | Glass | CEL 300-50 | 200 mm | ||
| 7.510 059 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Glass | CEL 300-10 UV254 | 200 mm | ||
| 4.004 804 | 50.00 | 50 x 200 mm | 100 µm | 200 mm | Polyester | POLYGRAM®CEL 300 UV254 | 50 mm | ||
| 7.400 578 | 25.00 | 200 x 200 mm | 100 µm | 200 mm | Polyester | POLYGRAM®CEL 300 UV254 | 200 mm | ||
| 4.005 051 | 50.00 | 50 x 200 mm | 100 µm | 200 mm | Aluminium | ALUGRAM®CEL 300 UV254 | 50 mm |
