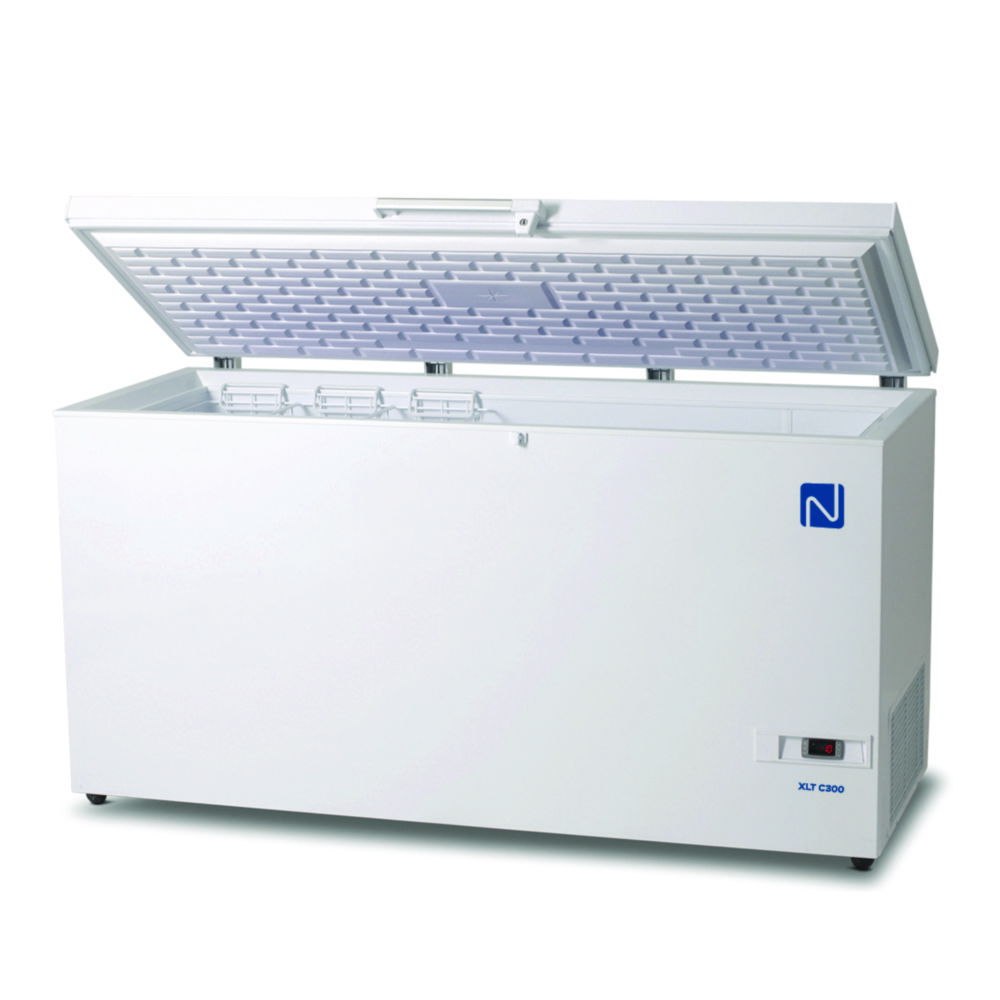

Chest freezers XLT series
Freezer for temporary to long-term cold storage or daily use in the laboratory. Ideal where space is limited, but the user still needs a regular storage capacity. Due to the small footprint, transport through all standard sized doors is possible. The material is galvanized and pre-coated steel on the outside, precoated white steel on the inside and cyclopentane for efficient insulation.
- Digital controller with display
- Audible and visual alarm
- High/low temperature alarm
- Porthole (Ø12 mm) for external probe and CO2 backup
- Integrated lock
- With 4 castors (XLT C75 without castors, with legs)
- Eco-friendly, HCFC-free Nature R refrigerant
- ISO 9001, 14001 and 45001 certified
Type designation -PLUS: With extended exchange warranty. In warranty cases which cannot be solved quickly on site, the client receives a new device.
Please order racks separately.
Toote variatsioonid
| Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Max. temperature | Max. voltage | Min. temperature | No. of baskets | Nominal capacity | Catalog number | Type | Weight | PK | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Power supply | Temperature | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 440 mm | 680 mm | 885 mm | 725 mm | 635 mm | 557 mm | 40 °C | 230 V | -60 °C | 1 | 133 l | 4.672 431 | XLT C150-PLUS | 59 kg | 1.00 | 725 x 680 x 885 mm | 557 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 387 mm | 630 mm | 870 mm | 555 mm | 466 mm | 387 mm | 40 °C | 230 V | -60 °C | 1 | 71 l | 4.672 430 | XLT C75-PLUS | 48 kg | 1.00 | 555 x 630 x 870 mm | 387 x 387 x 466 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 885 mm | 923 mm | 635 mm | 755 mm | 40 °C | 230 V | -60 °C | 1 | 189 l | 4.672 432 | XLT C200-PLUS | 62 kg | 1.00 | 923 x 680 x 885 mm | 755 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 890 mm | 1260 mm | 635 mm | 1100 mm | 40 °C | 230 V | -60 °C | 3 | 284 l | 4.672 433 | XLT C300-PLUS | 71 kg | 1.00 | 1,260 x 680 x 890 mm | 1,100 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 890 mm | 1560 mm | 635 mm | 1392 mm | 40 °C | 230 V | -60 °C | 4 | 368 l | 4.672 434 | XLT C400-PLUS | 80 kg | 1.00 | 1,560 x 680 x 890 mm | 1,392 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 387 mm | 630 mm | 870 mm | 555 mm | 466 mm | 387 mm | 40 °C | 230 V | -60 °C | 1 | 71 l | 4.672 410 | XLT C75 | 48 kg | 1.00 | 555 x 630 x 870 mm | 387 x 387 x 466 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 500 mm | 740 mm | 890 mm | 1660 mm | 640 mm | 1492 mm | 40 °C | 230 V | -60 °C | 3 | 476 l | 4.672 435 | XLT C500-PLUS | 108 kg | 1.00 | 1,660 x 740 x 890 mm | 1,492 x 500 x 640 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 885 mm | 923 mm | 635 mm | 755 mm | 40 °C | 230 V | -60 °C | 1 | 189 l | 4.672 412 | XLT C200 | 62 kg | 1.00 | 923 x 680 x 885 mm | 755 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 885 mm | 725 mm | 635 mm | 557 mm | 40 °C | 230 V | -60 °C | 1 | 133 l | 4.672 411 | XLT C150 | 59 kg | 1.00 | 725 x 680 x 885 mm | 557 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 890 mm | 1260 mm | 635 mm | 1100 mm | 40 °C | 230 V | -60 °C | 3 | 284 l | 4.672 413 | XLT C300 | 71 kg | 1.00 | 1,260 x 680 x 890 mm | 1,100 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 500 mm | 740 mm | 890 mm | 1660 mm | 640 mm | 1492 mm | 40 °C | 230 V | -60 °C | 3 | 476 l | 4.672 415 | XLT C500 | 108 kg | 1.00 | 1,660 x 740 x 890 mm | 1,492 x 500 x 640 mm | 230 V, 50 Hz | -60 ... -40 °C | ||
| 440 mm | 680 mm | 890 mm | 1560 mm | 635 mm | 1392 mm | 40 °C | 230 V | -60 °C | 4 | 368 l | 4.672 414 | XLT C400 | 80 kg | 1.00 | 1,560 x 680 x 890 mm | 1,392 x 440 x 635 mm | 230 V, 50 Hz | -60 ... -40 °C |
