Comparators 2000/3000 series

Two-Field and Three-Field Comparator View and nummerical results. The EComparator series offers the progress from Visual (subjective) to Electronic (objective) results.
With the EComparator series, viewers can view the colour difference with on-screen colour and on-screen numerical display. Touch screen technology makes the EComparator easily programmable with instinctive menus on screen. Users can set language, date and time, view preferences and create projects with individual tolerance settings “within tolerance” (green), “outside tolerance” (red) and “on border of tolerance” (amber) to provide the user with immediate information on the sample.

• Instant and accurate, ready for immediate use
• Guaranteed agreement with international standards
• Results shown on display optional as colour or numeric value
• Digital, mobile technology at the press of a button
• Instant reporting from the laboratory or on site

The EC 2000 range provides users with a Two Field View visual representation in alignment with the popular Lovibond^® Comparator 2000+ system widely used today.

The EC 3000 range provides users with a Three Field View visual representation in alignment with the popular Lovibond^® Comparator 3000 / AF comparators. Here the sample and two consecutive readings of the colour scale are viewed simultaneously, making it easier to achieve the optimum colour match.

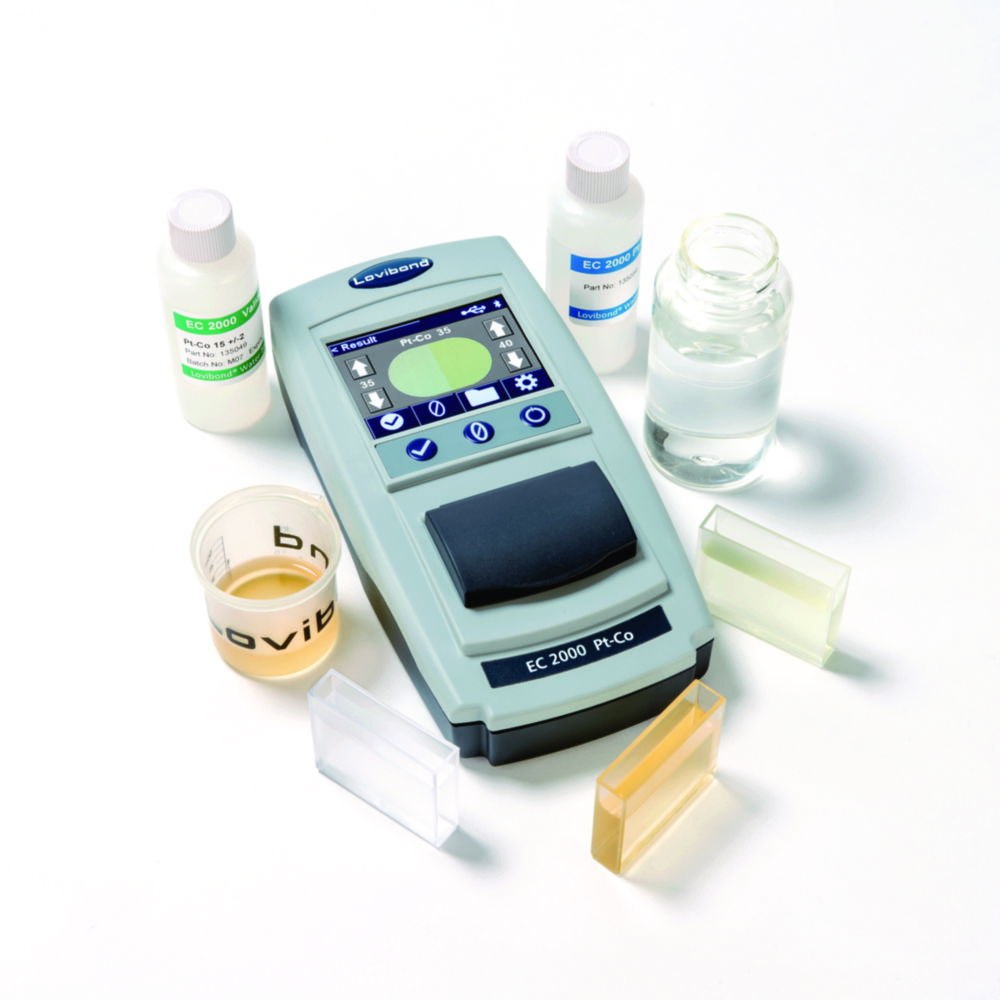

EC 2000 PT CO: Platinum-Cobalt/Hazen/Apha Colour (ASTM D 1209)/True Colour Units (TCU). Water, clear oils, chemicals and petrochemicals. Incl. cells (3 x 50 mm W100 plastic) and (1 x 50 mm W100 OG)

EC 2000 GARDNER COLOUR: ASTM D 1544, ASTM D 6166, AOCS Td 1a, MS 817 Part 10. Resins, varnishes, lacquers, drying oils, fatty acids, lecithins, sunflower oil, linseed oil. Incl. cells (3 x 10 mm W100 plastic) and (1 x 10 mm W100 OG)

EC 3000 ASTM COLOR: ASTM D 1500, ASTM D 6045, ISO 2049, IP196. For mineral oils and petrochemicals. Incl. cells (2 x 33 mm W100 plastic) and (2 x 33 mm W100 OG)

EC 3000 SAYBOLT COLOUR: ASTM D 156, ASTM D6045. Aviation fuels, kerosene, naphthas, white mineral oils, hydrocarbon solvents, petroleum waxes. Incl. cells (2 x 50 mm W100 plastic) and (2 x 50 mm W100 OG)

Scope of supply: Liquid reference standards and 1 glass standard included for EC 2000 and 2 glass standards included for EC 3000.
