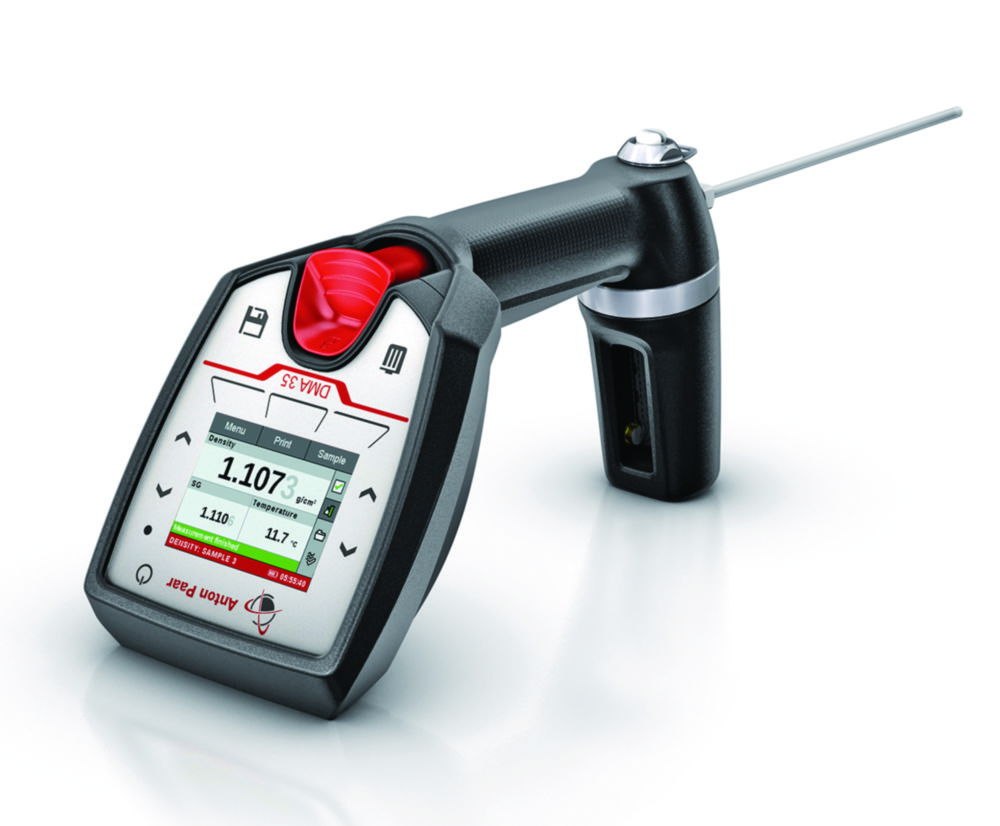

Density meters DMA 35
Portable, digital measuring device for the determination of density, relative density and concentration. DMA 35 EX and DMA 35 EX Petrol are certified according to ATEX for applications in hazardous environments.
- On-site measurements for fast reactions
- Oscillator principle (borosilicate glass oscillator)
- Sample filling via manual filling pump or syringe
- Complete data control through traceability
- Viscosity correction for measurements also on highly viscous samples
- Gesture control for one-handed measurement
- Recognition of results outside the tolerance limit
- Measuring of density, relative density, alcohol concentration, sugar/extraction concentration, API functions, H2SO4 concentration, ten programmable custom-specific measuring units
- Robust case with exchangeable cell
- 3 years warranty
Scope of supply: Density meter, filling tube, adapter for syringe filling, syringes, transportation case, rubber protection for measuring cell, 3 x batteries, allen key, instructions.
Toote variatsioonid
| Accuracy | Accuracy | Battery/rechargeable battery | Depth | Designation ANSI | Dimensions (WxDxH) | Height | Interfaces | IP code | Max. volume sample | Measured range | Catalog number | Resolution | Standard | Type | Volume sample | Waranty | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ±0.001 g/cm³ | 0.001 g/cm³ | 3 x 1.5 V, AA | 245 mm | AA | 103 x 245 x 126 mm | 126 mm | Bluetooth®, RFID | IP 54 | 2 ml | 0 ... 3 g/cm³ | 6.313 803 | 0.0001 g/cm³ | ISO 15212-1 | DMA 35 Standard | 2 ml | 3 years | 660 g | 103 mm | 1.00 | ||
| ±0.001 g/cm³ | 0.001 g/cm³ | 3 x 1.5 V, AA | 245 mm | AA | 103 x 245 x 126 mm | 126 mm | Bluetooth®, RFID | IP 54 | 2 ml | 0 ... 3 g/cm³ | 6.313 805 | 0.0001 g/cm³ | ISO 15212-1, IP 559, ASTM D7777 | DMA 35 EX Petrol | 2 ml | 3 years | 660 g | 103 mm | 1.00 | ||
| ±0.001 g/cm³ | 0.001 g/cm³ | 3 x 1.5 V, AA | 245 mm | AA | 103 x 245 x 126 mm | 126 mm | Bluetooth®, RFID | IP 54 | 2 ml | 0 ... 3 g/cm³ | 4.691 913 | 0.0001 g/cm³ | ISO 15212-1 | DMA 35 Ampere | 2 ml | 3 years | 660 g | 103 mm | 1.00 | ||
| ±0.001 g/cm³ | 0.001 g/cm³ | 3 x 1.5 V, AA | 245 mm | AA | 103 x 245 x 126 mm | 126 mm | Bluetooth®, RFID | IP 54 | 2 ml | 0 ... 3 g/cm³ | 6.313 804 | 0.0001 g/cm³ | ISO 15212-1 | DMA 35 EX | 2 ml | 3 years | 660 g | 103 mm | 1.00 |
