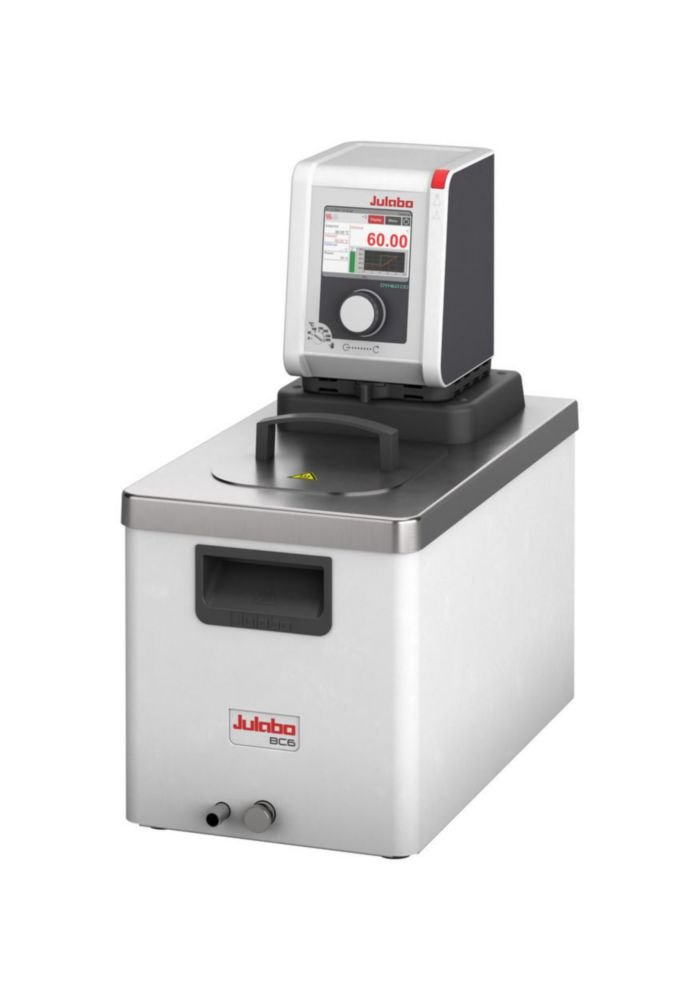

Heating circulator bath DYNEO™ DD-BC
For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.
- Easy switching between internal and external circulation
- Integrated cooling coil for counter-cooling
- Built-in drain tap
- Integrated programmer for 8 x 60 program steps
- Continuously adjustable, powerful pressure pump
- Pump connections M16 x 1 (outer thread)
- USB interface
- External Pt100 sensor connection
- High-quality bath tanks made of stainless steel
- Class III (FL) acc. to DIN 12876-1
2 hose connectors for 8 and 12 mm I.W. and bath lid included.
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | atr_llg_min_volume_bath | Catalog number | Power supply | Programmable | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | Width opening | With lid | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 mm | 150 mm | 330 x 490 x 470 mm | 490 mm | 470 mm | 330 mm | 2 kW | Stainless steel | 200 °C | 230 V | 12 l | -20 °C | 200 V | 8.5 l | 4.663 223 | 200 ... 230 V, 50/60 Hz | Yes | ±0,01 °C | 20 ... 200 °C | DD-BC12 | TFT | 8.5 ... 12 l | 11.9 kg | 220 mm | Yes | 1.00 | |||
| 150 mm | 150 mm | 230 x 410 x 420 mm | 410 mm | 420 mm | 230 mm | 2 kW | Stainless steel | 200 °C | 230 V | 4.5 l | -20 °C | 200 V | 3 l | 4.663 221 | 200 ... 230 V, 50/60 Hz | Yes | ±0,01 °C | 20 ... 200 °C | DD-BC4 | TFT | 3 ... 4.5 l | 8.5 kg | 130 mm | Yes | 1.00 | |||
| 200 mm | 150 mm | 240 x 440 x 470 mm | 440 mm | 470 mm | 240 mm | 2 kW | Stainless steel | 200 °C | 230 V | 6 l | -20 °C | 200 V | 4.5 l | 4.663 222 | 200 ... 230 V, 50/60 Hz | Yes | ±0,01 °C | 20 ... 200 °C | DD-BC6 | TFT | 4.5 ... 6 l | 9.7 kg | 130 mm | Yes | 1.00 | |||
| 200 mm | 350 mm | 390 x 620 x 480 mm | 620 mm | 480 mm | 390 mm | 2 kW | Stainless steel | 200 °C | 230 V | 26 l | -20 °C | 200 V | 19 l | 4.663 224 | 200 ... 230 V, 50/60 Hz | Yes | ±0,01 °C | 20 ... 200 °C | DD-BC26 | TFT | 19 ... 26 l | 18.7 kg | 260 mm | Yes | 1.00 |
