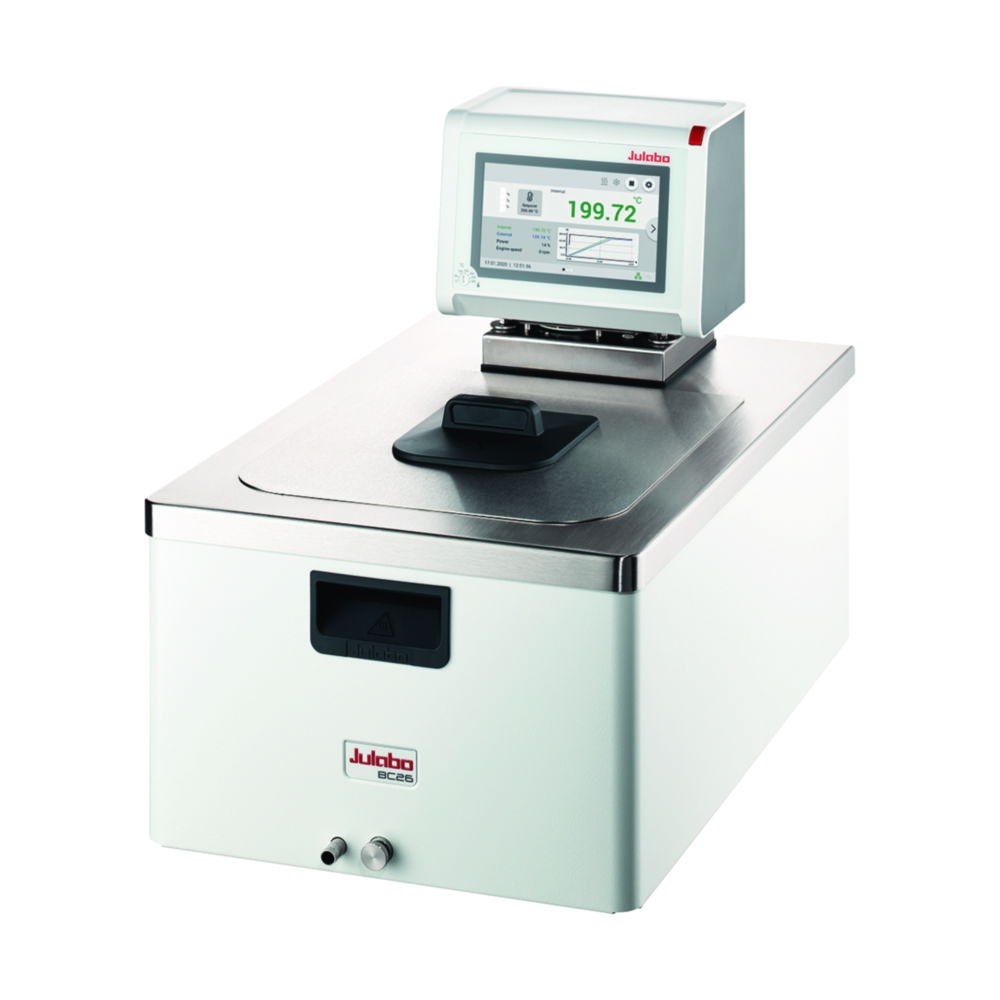

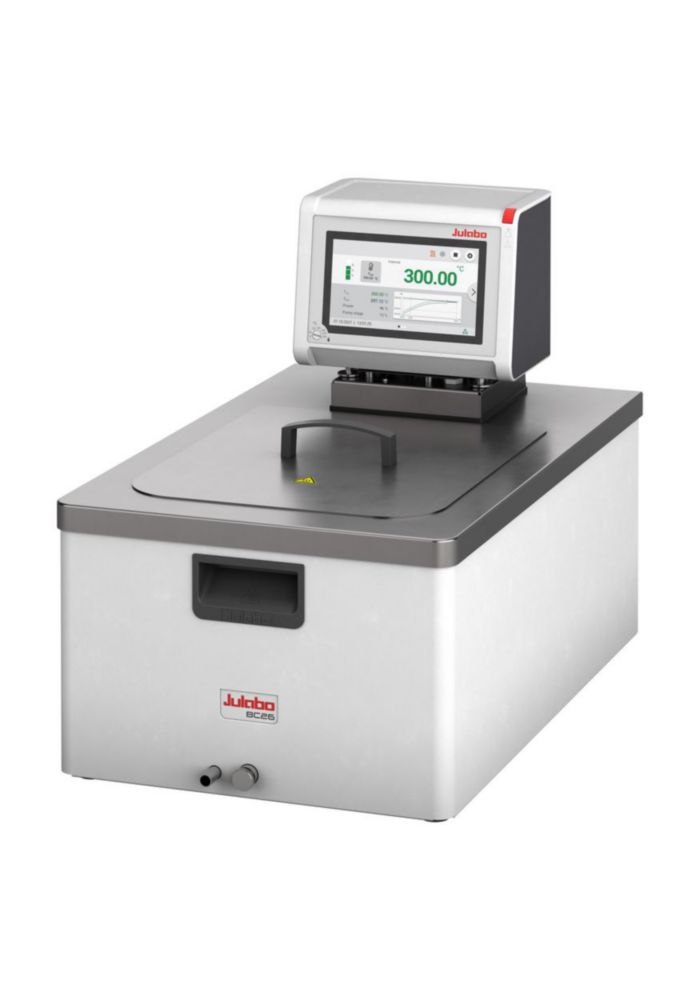

Heating circulator MAGIO MS/MX

For precise temperature control of internal and external applications.

Toote variatsioonid

Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	IP code	Material bath	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Min. voltage	atr_llg_min_volume_bath	Catalog number	Power supply	Programmable	Temp. Stability	Temperature	Type	Type of display	Volume bath	Weight	Width opening	With lid	With timer	PK
150 mm	150 mm	230 x 410 x 420 mm	410 mm	420 mm	230 mm	2 kW	IP 20	Stainless steel	0.4 bar	300 °C	230 V	4.5 l	-20 °C	200 V	3 l	4.678 303	200 ... 230 V, 50/60 Hz	Yes	±0,01 °C	20 ... 300 °C	MS-BC4	TFT	3 ... 4.5 l	11.1 kg	130 mm	Yes	Yes	1.00
200 mm	150 mm	240 x 440 x 470 mm	440 mm	470 mm	240 mm	3 kW	IP 20	Stainless steel	0.4 bar	300 °C	230 V	6 l	-20 °C	200 V	4.5 l	4.678 310	200 ... 230 V, 50/60 Hz	Yes	±0,01 °C	20 ... 300 °C	MX-BC6	TFT	4.5 ... 6 l	12.8 kg	130 mm	Yes	Yes	1.00
200 mm	350 mm	390 x 620 x 480 mm	620 mm	480 mm	390 mm	3 kW	IP 20	Stainless steel	0.4 bar	300 °C	230 V	26 l	-20 °C	200 V	19 l	4.678 312	200 ... 230 V, 50/60 Hz	Yes	±0,01 °C	20 ... 300 °C	MX-BC26	TFT	19 ... 26 l	21.4 kg	260 mm	Yes	Yes	1.00
200 mm	150 mm	330 x 490 x 470 mm	490 mm	470 mm	330 mm	3 kW	IP 20	Stainless steel	0.4 bar	300 °C	230 V	12 l	-20 °C	200 V	8.5 l	4.678 311	200 ... 230 V, 50/60 Hz	Yes	±0,01 °C	20 ... 300 °C	MX-BC12	TFT	8.5 ... 12 l	14.6 kg	220 mm	Yes	Yes	1.00
