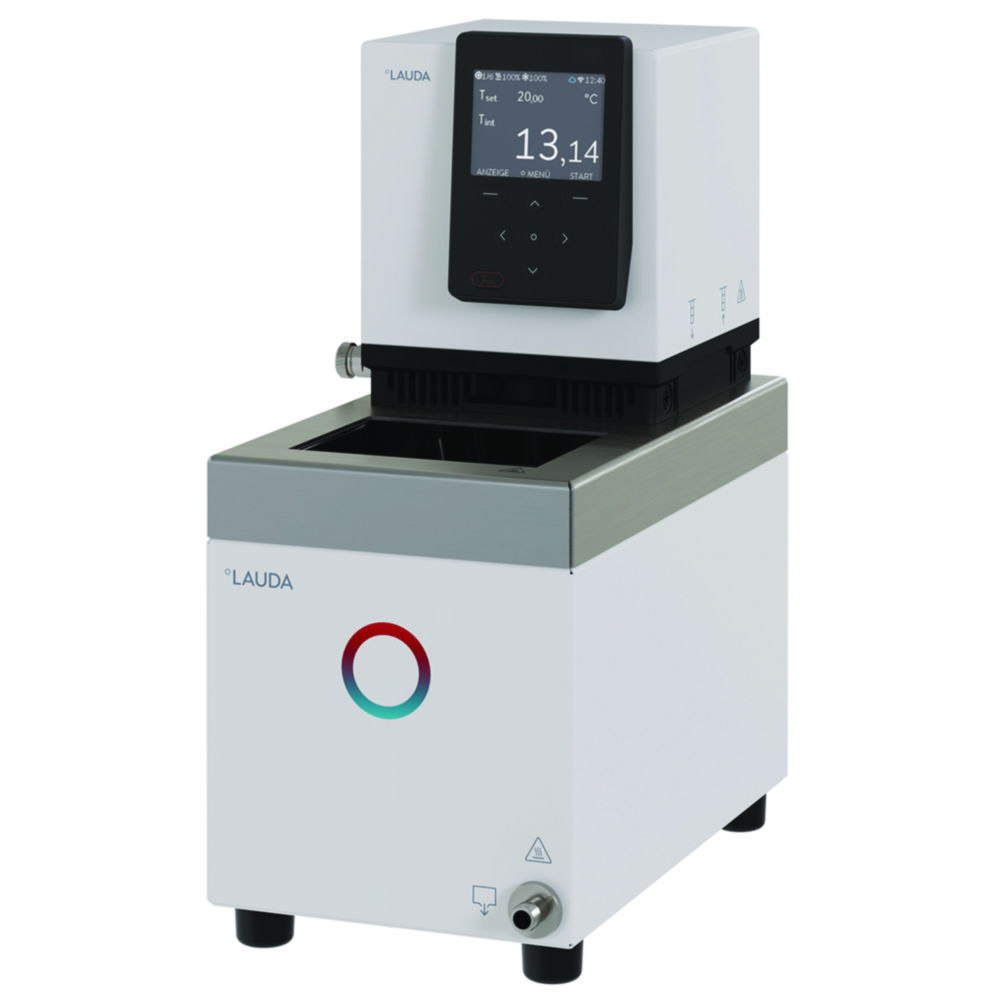

Heating thermostat Universa PRO
The heating thermostat with advanced electronics ensures precise control accuracy and uniform temperature distribution. It can be used for internal and external temperature control tasks. The innovative bath edge ventilation prevents icing and blocks condensate and vapours from entering the control head. The integrated web server allows flexible remote control within the company network via the LAUDA Command App or browser-based, secured by PKI and 2-factor authentication. The connection to LAUDA.LIVE enables cloud-based data analysis and remote maintenance.
- Efficient vario pump with six adjustable performance levels
- Front switch on the control head for adjusting the pump output during operation
- Colour 3.5″ TFT display with progression graph
- Clear menu navigation in six languages and clear operating status icons
- Integrated Ethernet and USB interface
- With programmer, calibration options, and weekly scheduler for process control
- Reliable low-level protection with float technology
- Adjustable overtemperature protection with acoustic alarm
- Smart temperature control media management with automatic limit value adjustment
- Tmax button allows direct access to overtemperature protection setting
- Insulated stainless steel bath with drain tap
- Pump connection M16x1
- Safety class III/FL
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | atr_llg_min_volume_bath | Catalog number | Plug type | Power supply | Programmable | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | Width opening | With lid | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200 mm | 300 mm | 280 x 550 x 476 mm | 550 mm | 476 mm | 280 mm | 2.8 kW | IP 21 | Stainless steel | 200 °C | 240 V | 17 l | -40 °C | 200 V | 11.5 l | 4.713 286 | CEE | 200 ... 240 V, 50/60 Hz | Yes | ±0,01 K | 40 ... 200 °C | U 16 P | TFT | 11.5 ... 17 l | 19 kg | 200 mm | No | 1.00 | |||
| 200 mm | 600 mm | 380 x 850 x 478 mm | 850 mm | 478 mm | 380 mm | 2.8 kW | IP 21 | Stainless steel | 200 °C | 240 V | 41 l | -40 °C | 200 V | 27.5 l | 4.713 304 | CEE | 200 ... 240 V, 50/60 Hz | Yes | ±0,01 K | 40 ... 200 °C | U 40 P | TFT | 27.5 ... 41 l | 28 kg | 300 mm | No | 1.00 | |||
| 160 mm | 100 mm | 190 x 330 x 436 mm | 330 mm | 436 mm | 190 mm | 2.8 kW | IP 21 | Stainless steel | 200 °C | 240 V | 5 l | -30 °C | 200 V | 3 l | 4.713 298 | CEE | 200 ... 240 V, 50/60 Hz | Yes | ±0,01 K | -30 ... 200 °C | U 4 P | TFT | 3 ... 5 l | 10.5 kg | 130 mm | No | 1.00 | |||
| 200 mm | 150 mm | 230 x 400 x 476 mm | 400 mm | 476 mm | 230 mm | 2.8 kW | IP 21 | Stainless steel | 200 °C | 240 V | 8.5 l | -40 °C | 200 V | 5.8 l | 4.713 318 | CEE | 200 ... 240 V, 50/60 Hz | Yes | ±0,01 K | 40 ... 200 °C | U 8 P | TFT | 5.8 ... 8.5 l | 15 kg | 150 mm | No | 1.00 |
