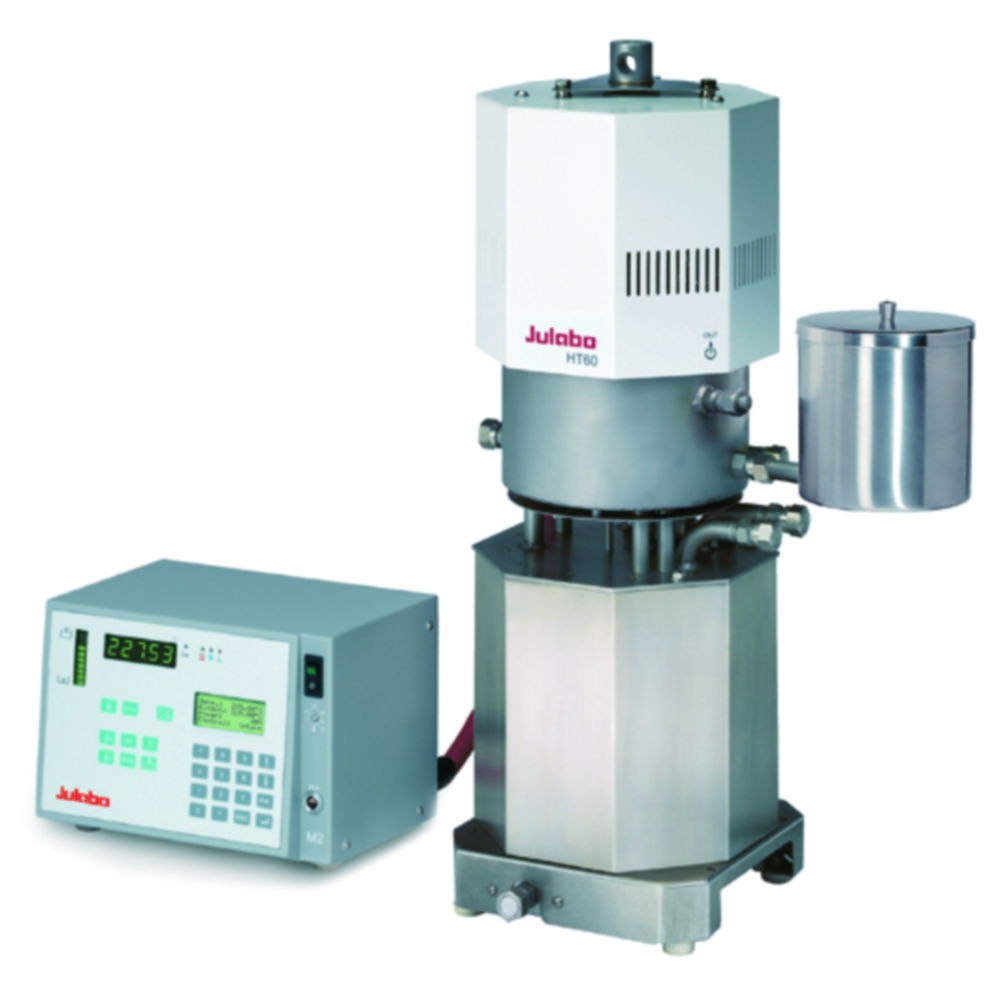

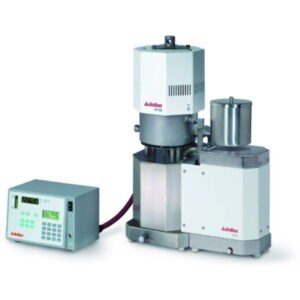

High-temperature circulators Forte HT
High-temperature circulators have a compact, closed construction to prevent the formation of oil fumes even at high temperatures. A powerful heating capacity ensures short heat-up times. Automatic heat-up and cracking protection ensure a long service life of the bath fluid. The entire system can be filled bubble-free thanks to a filling system with automatic venting.
- Self-optimising ICC cascade temperature control
- Pump capacity from 14 to 18 l/min
- Illuminated LCD display
- Electronic level indicator
- Integrated programmer with memory for 6 profiles with 60 programme steps each
- ATC function for simple temperature correction
- Small filling volume
- RS232 and RS485 interface, standby-input
- Integratable e.g. in miniplant systems
- Classification III (FL) according to DIN 12876-1
Toote variatsioonid
| External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Programmable | Temperature | Type | Volume bath | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 230 x 230 x 580 mm | 230 mm | 580 mm | 230 mm | 6 kW | IP 21 | 400 °C | 208 V | 2 l | -70 °C | 6.289 626 | 208 V, 60 Hz | Yes | 70 ... 400 °C | Forte HT60-M3 | 2 l | 29 kg | 1.00 | |||
| 230 x 230 x 580 mm | 230 mm | 580 mm | 230 mm | 7 kW | IP 21 | 400 °C | 400 V·3/N/PE | 2 l | -70 °C | 6.300 656 | 400 V·3/N/PE, 50 Hz | Yes | 70 ... 400 °C | Forte HT60-M2 | 2 l | 29 kg | 1.00 | |||
| 230 x 230 x 580 mm | 230 mm | 580 mm | 230 mm | 3 kW | IP 21 | 400 °C | 230 V | 2 l | -70 °C | 9.858 400 | 230 V, 50 Hz | Yes | 70 ... 400 °C | Forte HT30-M1 | 2 l | 27 kg | 1.00 |
