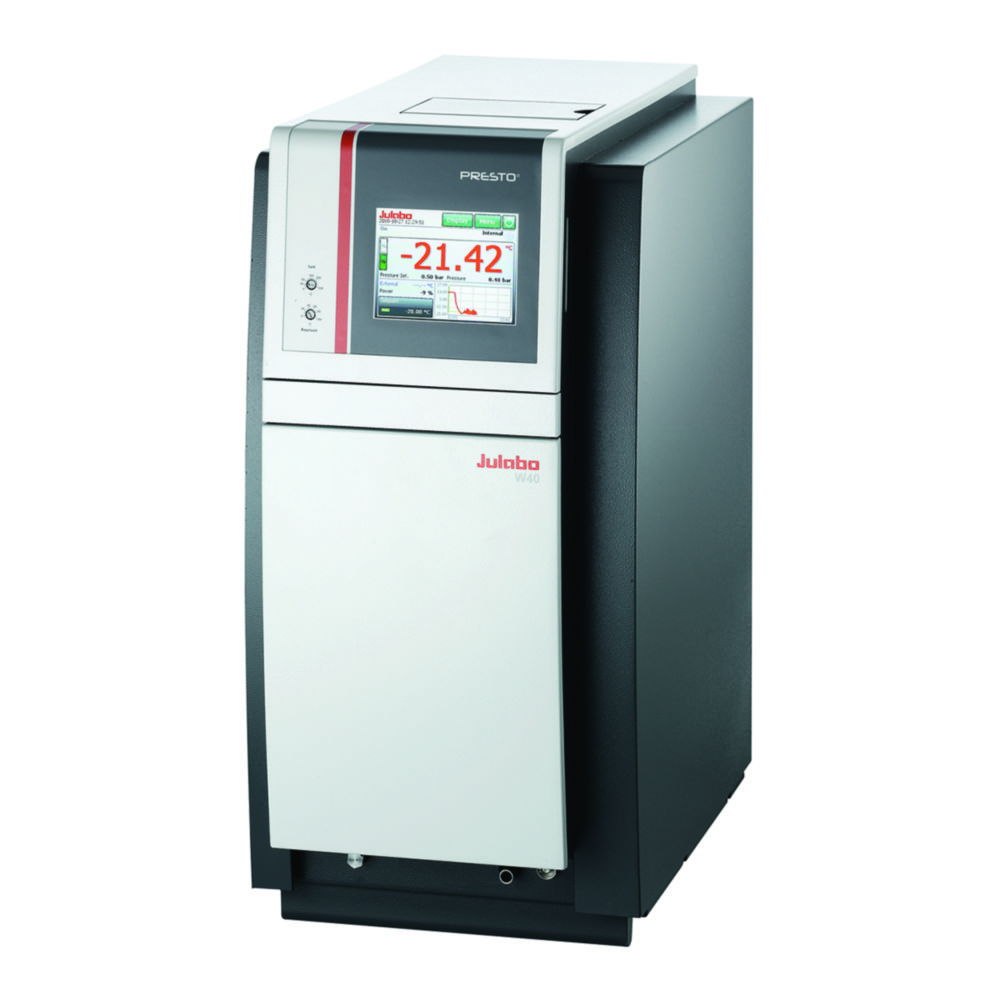

Highly dynamic temperature control systems PRESTO™, water-cooled 1-stage
- With water-cooled, 1-stage refrigerating machine
Toote variatsioonid
| Ext. depth | External dimensions (WxDxH) | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | Max. temperature | Min. temperature | Catalog number | Temp. Stability | Temperature | Type | Weight | PK | Refrigerant | Operation | Type of display | Waranty | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 665 mm | 530 x 665 x 1,260 mm | 1260 mm | 530 mm | 6 kW | IP 20 | 250 °C | -50 °C | 4.658 069 | ±0,05 ... ±0,1 °C | -50 ... 250 °C | W 50 | 210 kg | 1.00 | R452A | Touchscreen | TFT | 2 years | |||
| 665 mm | 530 x 665 x 1,260 mm | 1260 mm | 530 mm | 12 kW | IP 20 | 250 °C | -50 °C | 4.658 070 | ±0,05 ... ±0,1 °C | -50 ... 250 °C | W 50t | 210 kg | 1.00 | R452A | Touchscreen | TFT | 2 years | |||
| 590 mm | 330 x 590 x 670 mm | 670 mm | 330 mm | 2.7 kW | IP 21 | 250 °C | -40 °C | 9.857 917 | ±0,01 ... ±0,05 °C | -40 ... 250 °C | W 40 | 78 kg | 1.00 | - | Touchscreen | TFT | 2 years | |||
| 750 mm | 330 x 750 x 670 mm | 670 mm | 330 mm | 2.7 kW | IP 20 | 250 °C | -45 °C | 4.686 944 | ±0,01 ... ±0,05 °C | -45 ... 250 °C | W 41 | 83 kg | 1.00 | R1270 | Touchscreen | TFT | 2 years |
