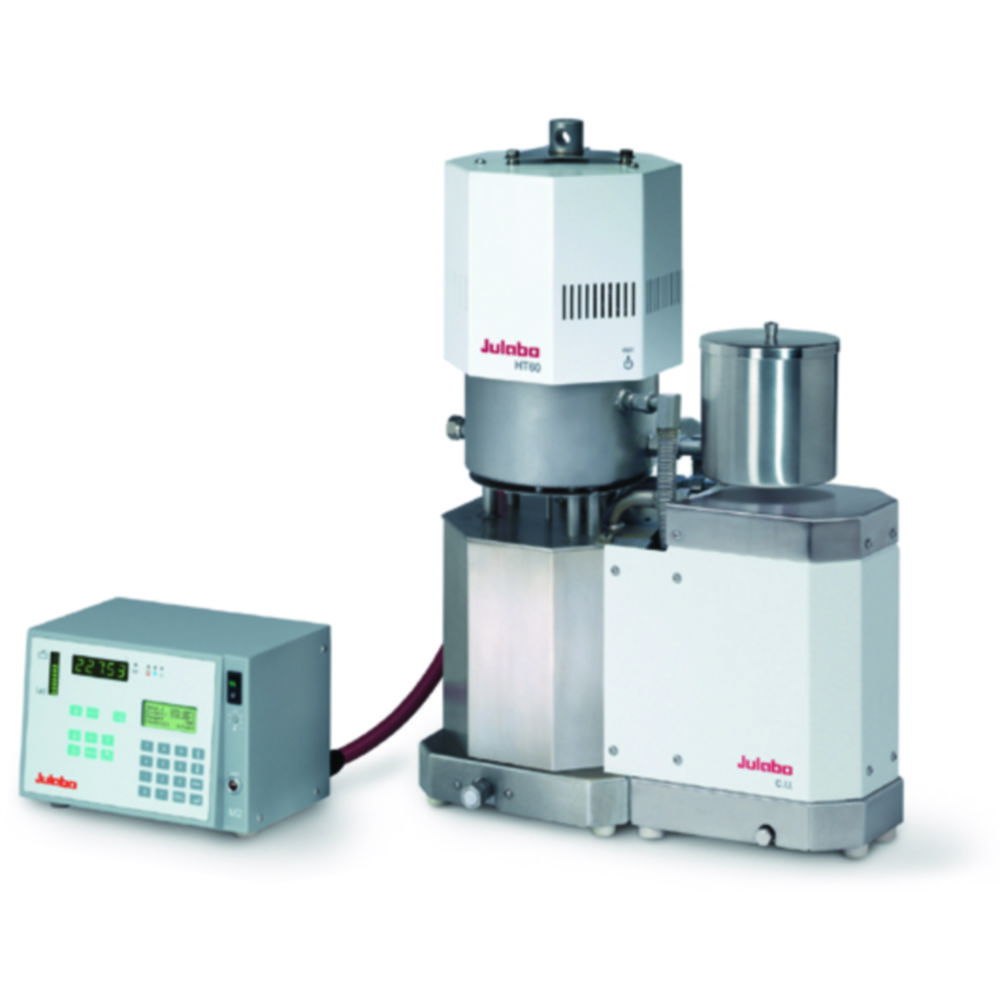

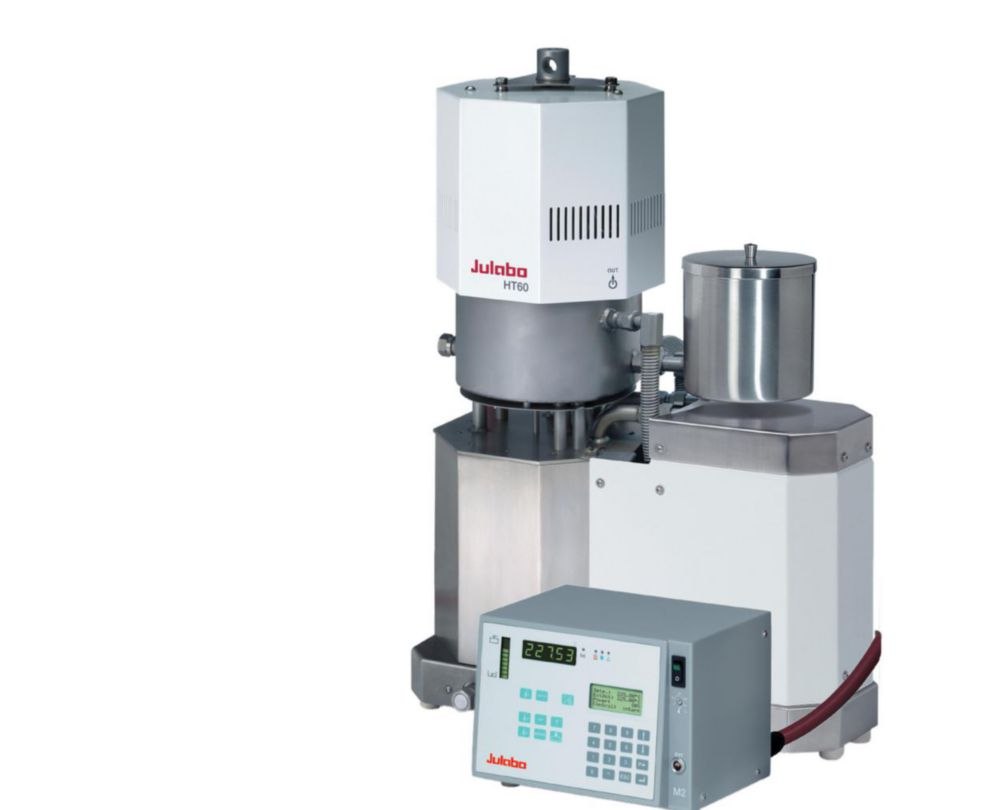

High-temperature circulators Forte HT-C.U., with cooling unit
The high-temperature circulators are equipped with a powerful cooling unit to enable temperature control tasks from 40 °C upwards. The cooling unit ensures rapid cooling phases across the entire temperature range. Exothermic reactions are quickly compensated.
Toote variatsioonid
| Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Programmable | Type | Weight | PK | External dimensions (WxDxH) | Power supply | Temperature | Volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 230 mm | 580 mm | 430 mm | 6 kW | IP 21 | 400 °C | 208 V | 2 l | -40 °C | 4.701 645 | Yes | Forte HT60-M3-C.U. | 37 kg | 1.00 | 430 x 230 x 580 mm | 208 V, 60 Hz | -40 ... 400 °C | 2 l | |||
| 230 mm | 580 mm | 430 mm | 3 kW | IP 21 | 400 °C | 230 V | 2 l | -40 °C | 6.222 575 | Yes | Forte HT30-M1-C.U. | 35 kg | 1.00 | 430 x 230 x 580 mm | 230 V, 50 Hz | -40 ... 400 °C | 2 l | |||
| 230 mm | 580 mm | 430 mm | 7 kW | IP 21 | 400 °C | 400 V·3/N/PE | 2 l | -40 °C | 9.858 404 | Yes | Forte HT60-M2-C.U. | 37 kg | 1.00 | 430 x 230 x 580 mm | 400 V·3/N/PE, 50 Hz | -40 ... 400 °C | 2 l |
