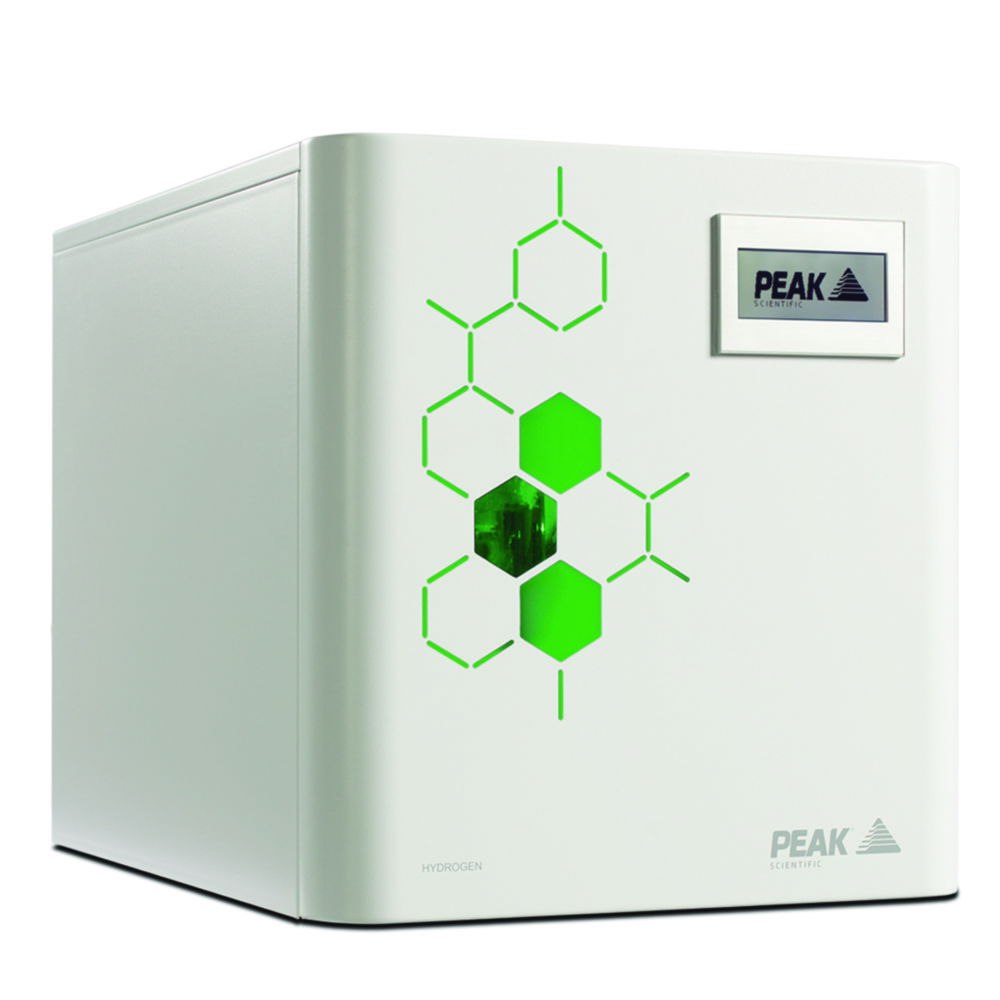

Hydrogen generators Precision Hydrogen

For the safe and continuous production of hydrogen with a purity of 99.9995% for GC and GC/MS.

• On-demand generation of high-purity hydrogen as detector gas for the FID
• Compact, modular and stackable system
• Hydrogen production from deionised water using proton exchange membrane
• Internal leakage detection with automatic switch-off function
• Minimal hydrogen storage in the system
• Front LED touch screen with status display
• Can be individually combined with PEAK zero nitrogen and zero air systems
• Systems are available with different flow rates
• Very low maintenance requirements
• 3 years warranty on the hydrogen cell

Scope of supply: Hydrogen generator, 1 m Tygon^® tubing, Deioniser column refill, barbed hose fitting, mains power cable for EU, UK and US, 2 x transit plugs

• Specifications
• Purity: 99.9995 %
• Max. pressure: 6.9 bar/100 psi
• Required water quality: <1.0 µS/cm
• Gas connection: 1/8″ Swagelok
• Permissible ambient temperature: 10 … 35 °C
• Dimensions (W x D x H): 380 x 540 x 406 mm
• Power supply: 110/230 V, 50/60 Hz
• Warranty: 3 years (cell) / 1 year (device)
