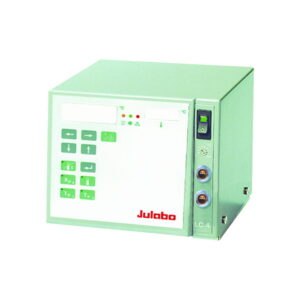

Laboratory temperature regulators
For monitoring and control of electronic heating equipment, such as heating mantles, heating baths, heating mats, water baths, oil baths etc. Fitted with state of the art control electronics.
- Multi-Display: separate (LED) temperature displays for set and actual values, and for high and low temperature warning and safety functions
- Splashproof, membrane keypad which is easy to use
- Display resolution 0.1°C
- Adjustable control parameters
- PID control
- Connections for control and safety sensors
- Max. switching capacity: 2kW
… and even more features with the LC6 programme controller:
- ICC = Intelligent Cascade Control; adjustable classic PID control
- Additional LCD function display for user-friendly operation
- Integral programmer (6 profiles with 60 segments)
- Connections for 2 control and 1 safety sensors
- Max. switching capacity: 3kW.
Toote variatsioonid
| Type | Connection | Serial interface | Temp. range max. °C | Temp. Stability K | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| LC4 | 1 x Pt100 | RS232 | -50 to 350 | > ± 0.05 | 9.724 984 | 1.00 | ||
| LC6 | 2 x Pt100 | RS232/RS485 | -100 to 400 | > ± 0.03 | 9.724 986 | 1.00 |
