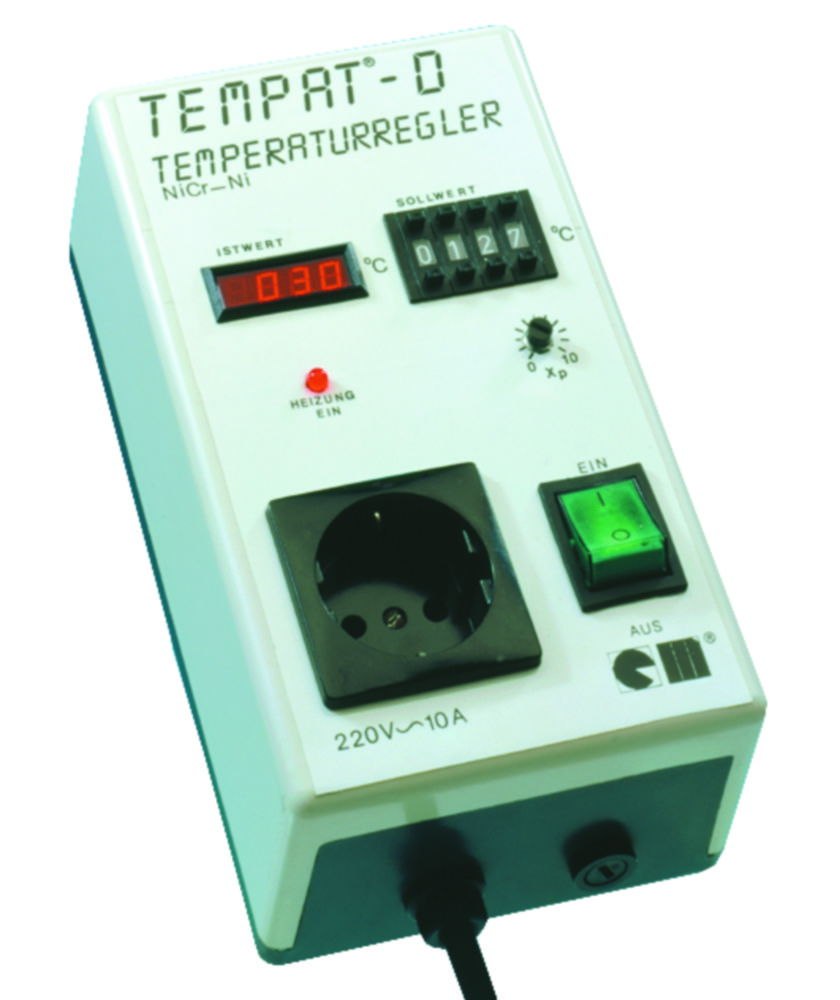

Temperature controllers, TEMPAT®-D
For controlling temperature of heating coils, hotplates, ovens, infrared radiators and water baths. TEMPAT®-D has a 10 mm high, LED display which can even be seen in dark rooms and allows monitoring of actual temperature at any time. Set point can be entered via a 3 or 4 figure coding switch with 1 °C resolution. Built-in sensor breakdown fuse, switching interval display and Xp trimmer to adjust variable gain amplification between 0 and 10 K. Sensor connection is via a plug-in socket. Switching capacity: 2300 W, 10 A.
Appropriate temperature sensor please order separately.
If no temperature sensor is ordered, a loose plug is supplied.
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Material housing | Max. temperature | Max. voltage | Min. temperature | Power supply | Sensor inputs | Temperature | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.725 381 | 1.00 | 188 mm | 110 x 188 x 70 mm | 70 mm | PC | 400 °C | 230 V | 0 °C | 230 V, 50...60 Hz | Pt100 | 0 ... 400 °C | TEMPAT® D Pt100 | 110 mm | ||
| 9.725 382 | 1.00 | 188 mm | 110 x 188 x 70 mm | 70 mm | PC | 600 °C | 230 V | 0 °C | 230 V, 50...60 Hz | Fe-CuNi | 0 ... 600 °C | TEMPAT® D Fe-CuNi | 110 mm | ||
| 9.725 383 | 1.00 | 188 mm | 110 x 188 x 70 mm | 70 mm | PC | 1200 °C | 230 V | 0 °C | 230 V, 50...60 Hz | NiCr-Ni | 0 ... 1,200 °C | TEMPAT® D NiCr-Ni | 110 mm |
