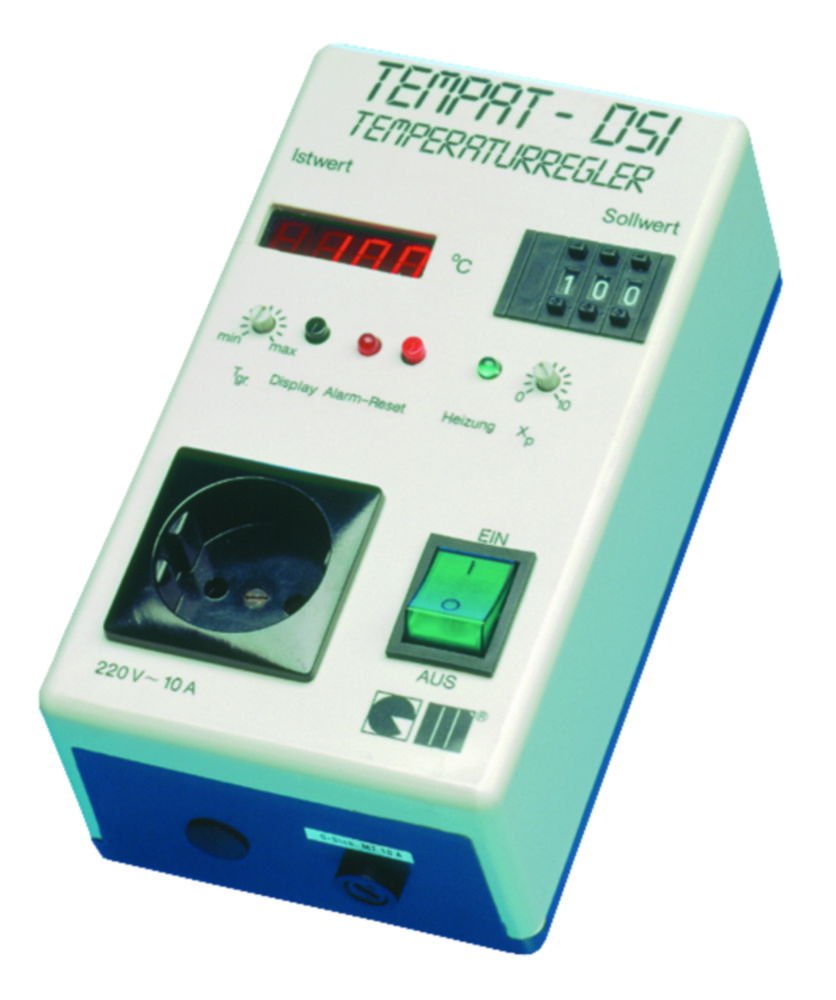

Temperature controllers, TEMPAT®-DSI

Safety temperature controllers for regulating the temperature of heating coils, hotplates, ovens, infrared radiators and water baths with 7mm high LED display. A coding switch is provided for entering set points. For optimum safety: Irreversible safety contact breaker with secondary sensor input and dipole switch-off in the event of overtemperature or sensor malfunction. Visual and audible alarms. Critical temperature values are set using potentiometer and controlled via the display.

Appropriate temperature sensor please order separately.
For each operating two sensors per thermostat is required. Please order separately.

Toote variatsioonid

Catalog numberPKDepthDimensions (WxDxH)HeightMax. temperatureMax. voltageMin. temperatureMin. voltagePower supplySensor inputsSwitching capacityTemperatureTypeWeightWidthKogus
9.725 3651.00188 mm110 x 188 x 70 mm70 mm400 °C235 V0 °C220 V220 ... 235 V, 50/60 Hz , 8 APt1001800 VA0 ... 400 °CTEMPAT®-DSI Pt1001100 g110 mm
9.725 3661.00188 mm110 x 188 x 70 mm70 mm600 °C235 V0 °C220 V220 ... 235 V, 50/60 Hz , 8 AFe-CuNi1800 VA0 ... 600 °CTEMPAT®-DSI Fe-CuNi1100 g110 mm
9.725 3671.00188 mm110 x 188 x 70 mm70 mm1200 °C235 V0 °C220 V220 ... 235 V, 50/60 Hz , 8 ANiCr-Ni1800 VA0 ... 1,200 °CTEMPAT®-DSI NiCr-Ni1100 g110 mm
