Injector Modules for Miele laboratory washers and disinfectors
Toote variatsioonid
| Catalog number | Description | For | Type | PK | Depth | Dimensions (WxDxH) | Height | Material | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|

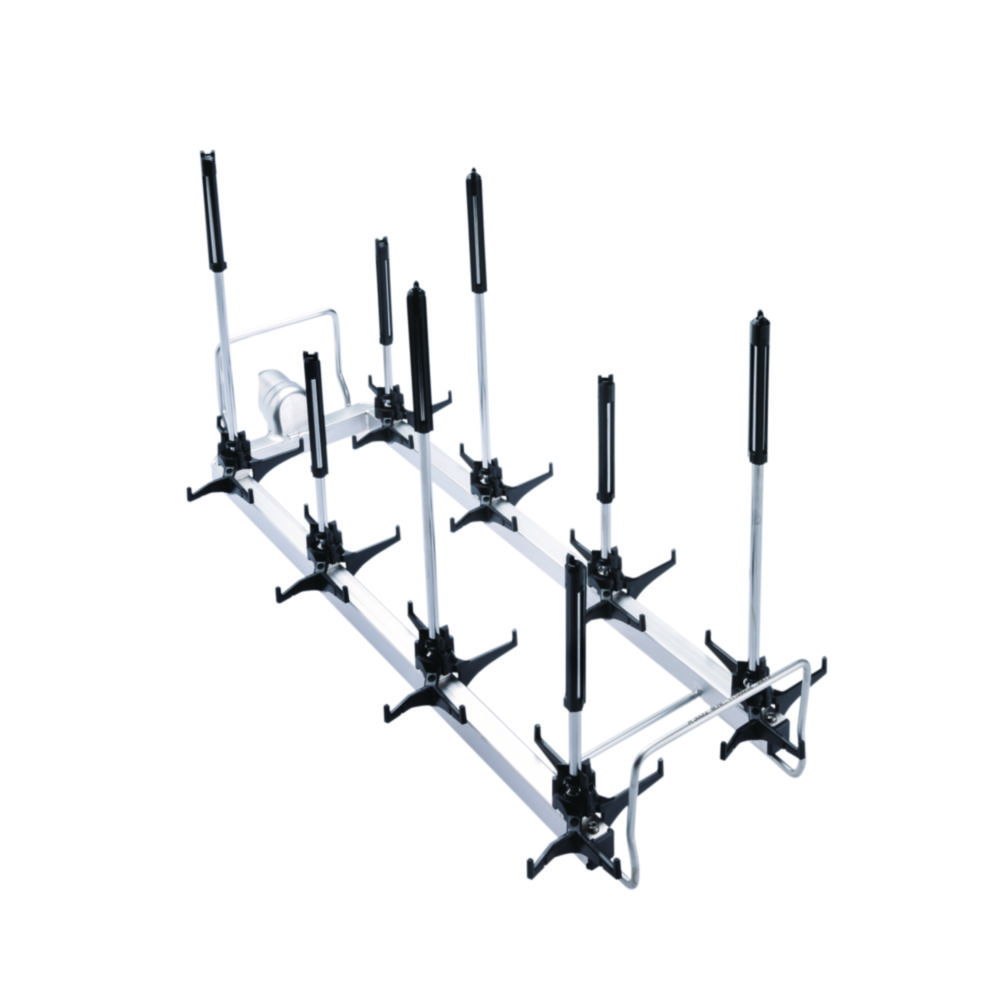

| 4.666 033 | Module for laboratory glassware with 8 nozzles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 300/3 | 1.00 | 479 mm | 208 x 479 x 228 mm | 228 mm | Stainless steel/plastic | 208 mm | ||
| 6.266 445 | Module for pipettes | PLW 8636 / PLW 8683 / PLW 8693 / PLW 7111 | A 303 | 1.00 | 471 mm | 222 x 471 x 185 mm | 185 mm | Stainless steel/plastic | 222 mm | ||
| 4.666 032 | Module for laboratory glassware 3 x 6, 18 injector nozzles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 301/5 | 1.00 | 480 mm | 232 x 480 x 203 mm | 203 mm | Stainless steel/plastic | 232 mm | ||
| 6.315 109 | Module for 4 x 1-2 l measuring cylinder | PLW 8636 / PLW 8683 / PLW 8693 / PLW 7111 | A 306/1 | 1.00 | 471 mm | 418 x 471 x 235 mm | 235 mm | Stainless steel/plastic | 418 mm | ||
| 6.266 446 | Module for vials | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 304 | 1.00 | 471 mm | 222 x 471 x 130 mm | 130 mm | Stainless steel/plastic | 222 mm | ||
| 4.666 034 | Module for laboratory glassware 4 x 8, 16 injector nozzles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 302/3 | 1.00 | 479 mm | 238 x 479 x 143 mm | 143 mm | Stainless steel/plastic | 238 mm | ||
| 4.666 337 | Module for narrow-necked jars/bottles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 302/2 | 1.00 | 500 mm | 205 x 500 x 90 mm | 90 mm | Stainless steel/plastic | 205 mm | ||
| 6.275 696 | Module without nozzles, can be fitted with 18 nozzles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 301/4 | 1.00 | 479 mm | 173 x 479 x 72 mm | 72 mm | Stainless steel | 173 mm | ||
| 6.314 997 | Module for the optimal processing of volumetric and measuring pipettes | PLW 8615 / PLW 8616 / PLW 8617 | A 613 | 1.00 | 604 mm | 254 x 604 x 194 mm | 194 mm | Stainless steel/plastic | 254 mm | ||
| 6.315 260 | Module for processing large-volume laboratory glassware | PLW 8636 / PLW 8683 / PLW 8693 / PLW 7111 | A 313 | 1.00 | 505 mm | 234 x 505 x 221 mm | 221 mm | Stainless steel/plastic | 234 mm | ||
| 6.316 385 | Module without nozzles, can be fitted with 8 nozzles | PLW 8636 / PLW 8604 / PLW 8683 / PLW 8693 / PLW 7111 | A 300/2 | 1.00 | 479 mm | 133 x 479 x 72 mm | 72 mm | Stainless steel | 133 mm | ||
| 4.682 495 | Module for the optimal processing of laboratory glassware, with 10 injector stations | PLW 8615 / PLW 8616 / PLW 8617 | A 620 | 1.00 | 608 mm | 150 x 608 x 113 mm | 113 mm | Stainless steel | 150 mm | ||
| 4.682 497 | Module for the optimal processing of laboratory glassware, with 20 injector stations | PLW 8615 / PLW 8616 / PLW 8617 | A 621 | 1.00 | 608 mm | 173 x 608 x 113 mm | 113 mm | Stainless steel | 173 mm | ||
| 4.682 500 | Module for the optimal processing of large-volume laboratory glassware | PLW 8615 / PLW 8616 / PLW 8617 | A 612 | 1.00 | 602 mm | 293 x 602 x 221 mm | 221 mm | Stainless steel/plastic | 293 mm | ||
| 6.325 484 | Module for up to 8 viscometers | PLW 8636 / PLW 8683 / PLW 8693 / PLW 7111 | A 312 | 1.00 | 479 mm | 133 x 479 x 66 mm | 66 mm | Stainless steel/plastic | 133 mm |
