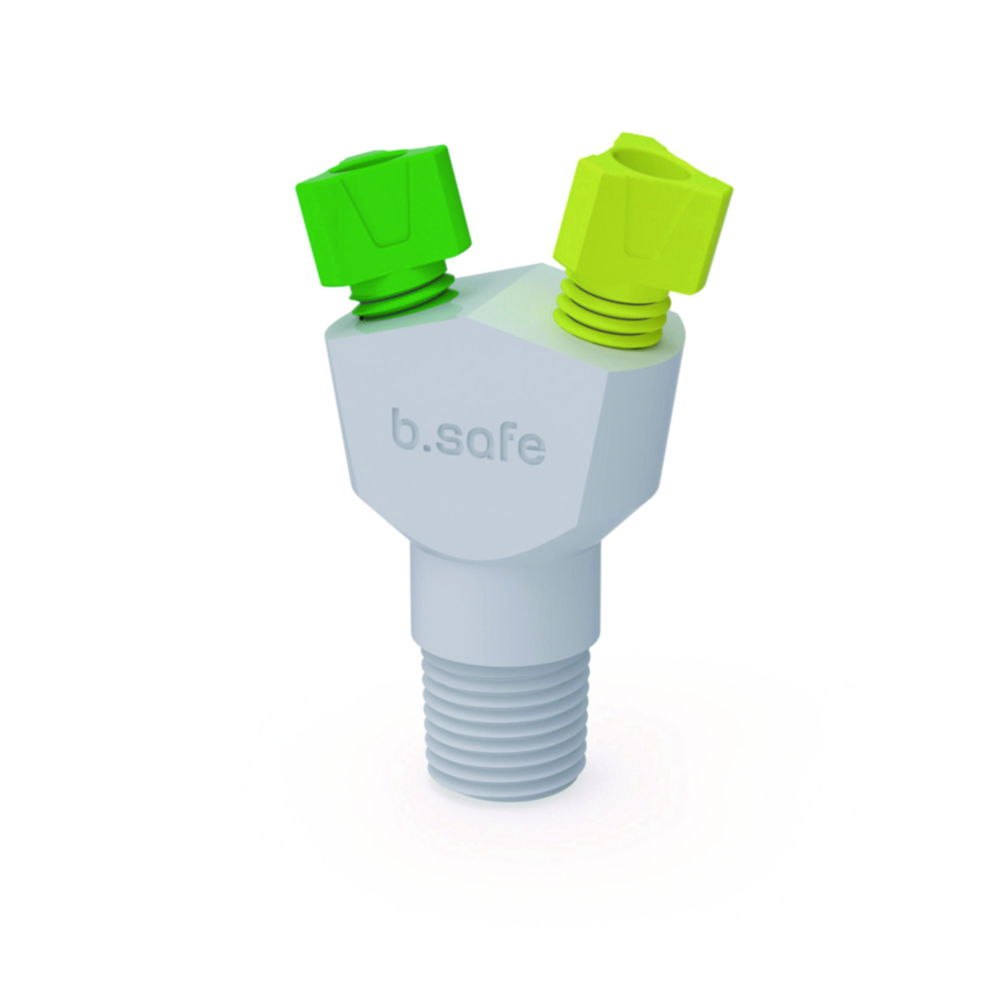

Multiport, PTFE

Multiport for capillary and tubing connectors on b.safe caps with thread NPT 1/8″. With PFA fittings for capillaries (O.D. 1.6/2.2/3.2 mm) and hose olives for tubing with I.D. 5.5 to 8.0 mm. Fittings (UNF 1/4″), hose olives (NPT 1/8″).

Toote variatsioonid

<th class='No. of
olives sortable asc'>No. of
olives<td data-title='No. of
olives'>3<td data-title='No. of
olives'>-<td data-title='No. of
olives'>-<td data-title='No. of
olives'>-<td data-title='No. of
olives'>1<td data-title='No. of
olives'>1<td data-title='No. of
olives'>3 x 90°<td data-title='No. of
olives'>-
Catalog numberPKHose connectionsMaterialThreadNo. of fittingsKogus
4.680 1341.003PTFENPT 1/8"-
4.681 1881.00-PTFENPT 1/8"2 x 1,6/ 2,2/ 3,2 mm
4.681 6331.00-PTFENPT 1/8"8 x 1,6/2,2/3,2 mm
4.681 1891.00-PTFENPT 1/8"3 x 1,6/ 2,2/ 3,2 mm
4.681 6341.001PTFENPT 1/8"7 x 1,6/2,2/3,2 mm
4.680 4611.001PTFENPT 1/8"2 x 1,6/2,2/3,2 mm, 90°
4.681 6361.003PTFENPT 1/8"-
4.681 6351.00-PTFENPT 1/8"3 x 1,6/2,2/3,2 mm, 90°
