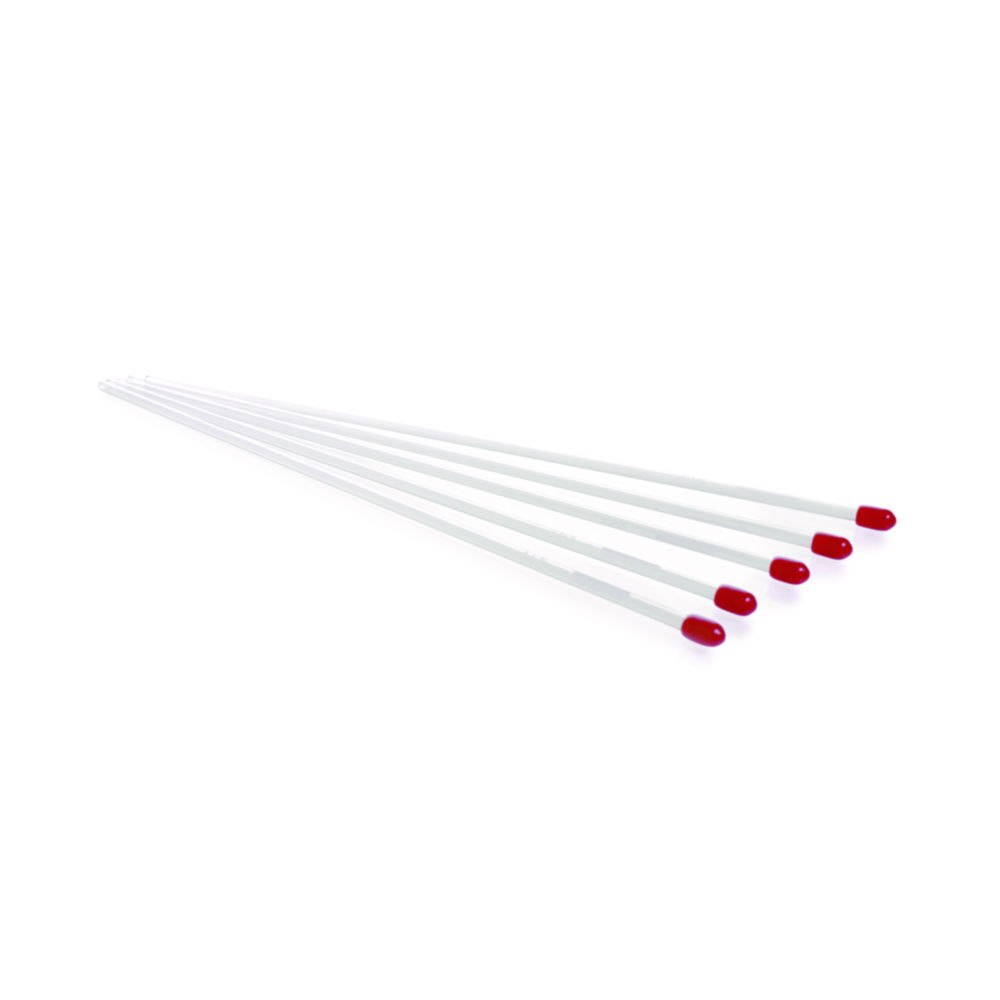

NMR tubes, 3 and 5mm, borosilicate glass 3.3, KIMAX®-HQ
Our KIMAX®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications.
- High-Quality NMR tubes
- Attached polyethylene caps
- Sandblasted marking spot
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Toote variatsioonid
| Catalog number | PK | Camber | Concentricity | Ext. Ø | Int. Ø | Length | Material | Wall thickness | Tolerance ext. Ø | Max. frequency | Tolerance int. Ø | Min. frequency | Ext. Ø | Frequency | Int. Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.280 135 | 5.00 | 3.8 µm | 5 µm | 4,9700 mm | 4.2000 mm | 178 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 800 MHz | 0.013 mm | - | 4,9700 mm ± 0.013 | 800 MHz | 4.2000 mm ± 0.013 | ||
| 7.982 133 | 5.00 | 25 µm | 38 µm | 4,9700 mm | 4.2000 mm | 178 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 300 MHz | 0.013 mm | - | 4,9700 mm ± 0.013 | 300 MHz | 4.2000 mm ± 0.013 | ||
| 9.400 318 | 5.00 | 9 µm | 13 µm | 4,9700 mm | 4.2000 mm | 203 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 700 MHz | 0.013 mm | 600 MHz | 4,9700 mm ± 0.013 | 600 ... 700 MHz | 4.2000 mm ± 0.013 | ||
| 9.400 317 | 5.00 | 6 µm | 13 µm | 4,9700 mm | 4.2000 mm | 178 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 700 MHz | 0.013 mm | 600 MHz | 4,9700 mm ± 0.013 | 600 ... 700 MHz | 4.2000 mm ± 0.013 | ||
| 9.400 320 | 5.00 | 3.8 µm | 5 µm | 4,9700 mm | 4.2000 mm | 203 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 900 MHz | 0.013 mm | - | 4,9700 mm ± 0.013 | 900 MHz | 4.2000 mm ± 0.013 | ||
| 9.400 319 | 5.00 | 3.8 µm | 5 µm | 4,9700 mm | 4.2000 mm | 178 mm | Boro 3.3 | 0,375 mm | 0.013 mm | 900 MHz | 0.013 mm | - | 4,9700 mm ± 0.013 | 900 MHz | 4.2000 mm ± 0.013 | ||
| 9.400 322 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 203 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 300 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 300 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 321 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 178 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 100 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 100 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 324 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 178 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 400 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 400 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 326 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 203 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 500 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 500 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 327 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 178 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 800 MHz | 0.013 mm | 600 MHz | 3,0124 mm ± 0.013 | 600 ... 800 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 325 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 178 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 500 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 500 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 323 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 178 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 200 MHz | 0.013 mm | - | 3,0124 mm ± 0.013 | 200 MHz | 2.4003 mm ± 0.013 | ||
| 9.400 328 | 5.00 | - | - | 3,0124 mm | 2.4003 mm | 203 mm | Boro 3.3 | 0,284 mm | 0.013 mm | 800 MHz | 0.013 mm | 600 MHz | 3,0124 mm ± 0.013 | 600 ... 800 MHz | 2.4003 mm ± 0.013 |
