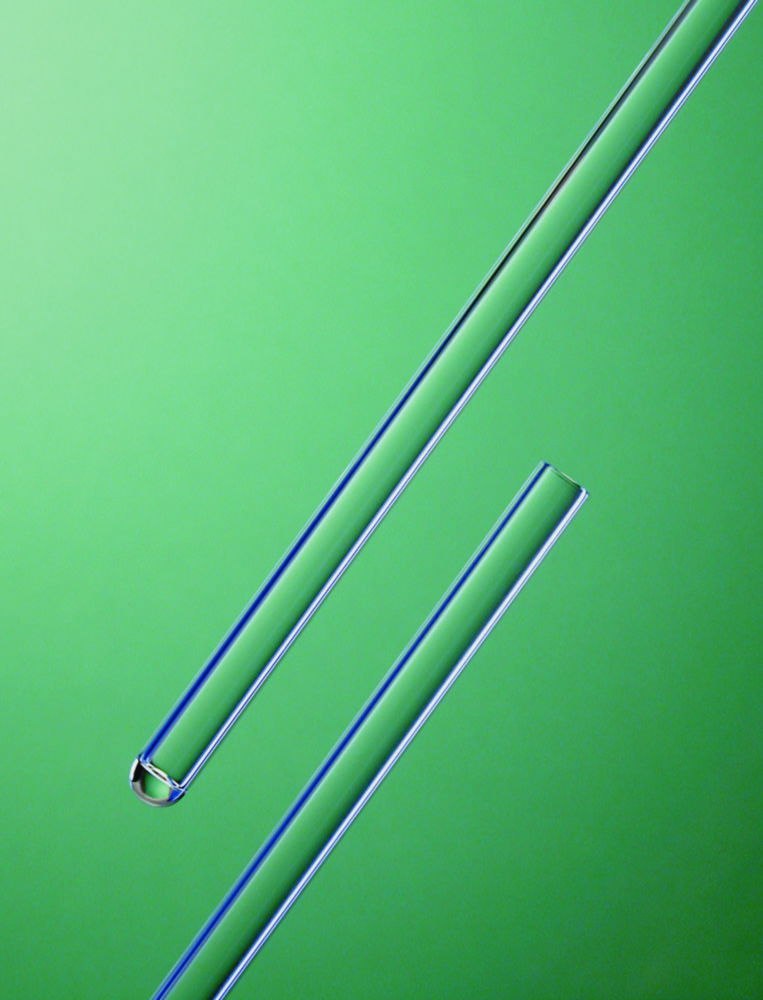

NMR tubes, diameter 3 and 5 mm borosilicate glass 3.3, standard
The NMR tubes are produced with high precision. They are suitable for routine measurements, high-throughput measurements or NMR systems with autosampler at measurement frequencies up to 600 MHz. The tubes are manufactured from borosilicate glass 3.3 which is conform to USP Type I and ASTM E438, Type I, Class A. Please order closing caps separately.
Toote variatsioonid
| Catalog number | PK | Ext. Ø | Int. Ø | Length | Material | Tolerance ext. Ø | Wall thickness | Max. frequency | Tolerance int. Ø | Ext. Ø | Frequency | Int. Ø | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.400 310 | 100.00 | 4,95 mm | 4.19 mm | 178 mm | Boro 3.3 | 0.05 mm | 0,38 mm | 600 MHz | 0.05 mm | 4,95 mm ± 0.05 | 600 MHz | 4.19 mm ± 0.05 | ||
| 9.400 311 | 100.00 | 4,95 mm | 4.19 mm | 203 mm | Boro 3.3 | 0.05 mm | 0,38 mm | 600 MHz | 0.05 mm | 4,95 mm ± 0.05 | 600 MHz | 4.19 mm ± 0.05 | ||
| 6.281 792 | 50.00 | 2,95 mm | 2.36 mm | 178 mm | Boro 3.3 | 0.03 mm | 0,29 mm | 600 MHz | 0.03 mm | 2,95 mm ± 0.03 | 600 MHz | 2.36 mm ± 0.03 | ||
| 6.281 793 | 50.00 | 2,95 mm | 2.36 mm | 203 mm | Boro 3.3 | 0.03 mm | 0,29 mm | 600 MHz | 0.03 mm | 2,95 mm ± 0.03 | 600 MHz | 2.36 mm ± 0.03 |
