OPTIMA® 1 high performance capillary columns for GC

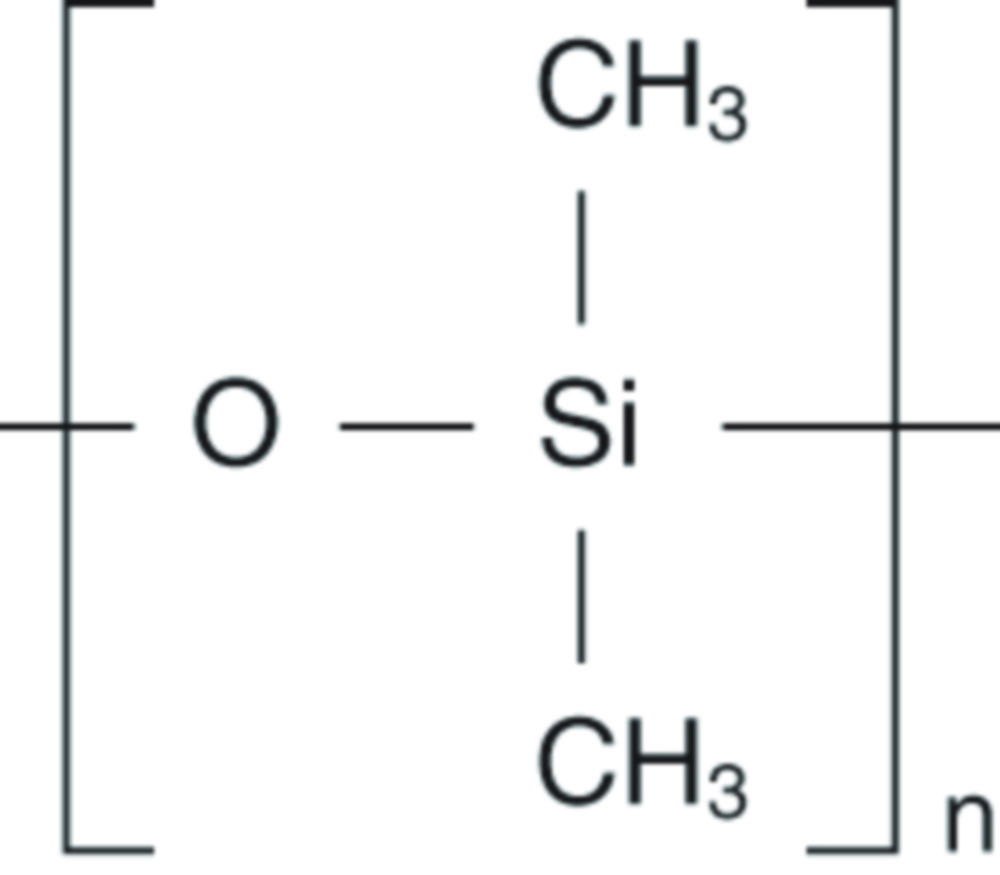

100% dimethylpolysiloxane
nonpolar phase separation of components according to boiling points thick film columns ≥3µm film are especially recommended for solvent analysis.
Similar phases: Permabond® SE-30, OV-1, DB-1, SE-30, HP-1, SPB-1, CP-Sil 5 CB, Rtx-1, 007-1, BP1, MDN-1, AT-1, ZB-1, OV-101.
For columns with 0.25 to 0.32mm ID and films <3µm the max. temperature for isothermal operation is 340°C, the max. temperature for short isotherms in a temperature programme is 360°C.
For 0.53mm ID columns with films <3µm the max. temperatures are 320 and 340°C, resp. for thick film columns with films ≥3µm the max. temperatures are 300 and 320 °C, resp.
Toote variatsioonid
| Catalog number | PK | Int. Ø | Length | Film thickness | Material column | Polarity | USP listing | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 4.003 152 | 1.00 | 0.53 mm | 25 m | 2.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 149 | 1.00 | 0.53 mm | 25 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 165 | 1.00 | 0.53 mm | 30 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 153 | 1.00 | 0.53 mm | 30 m | 2.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 150 | 1.00 | 0.53 mm | 30 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 164 | 1.00 | 0.53 mm | 25 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 267 | 1.00 | 0.53 mm | 30 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 663 | 1.00 | 0.25 mm | 30 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 662 | 1.00 | 0.25 mm | 25 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 674 | 1.00 | 0.25 mm | 60 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 265 | 1.00 | 0.53 mm | 25 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 659 | 1.00 | 0.25 mm | 60 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 4.003 266 | 1.00 | 0.53 mm | 30 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 658 | 1.00 | 0.25 mm | 30 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 657 | 1.00 | 0.25 mm | 25 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 670 | 1.00 | 0.25 mm | 60 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 706 | 1.00 | 0.32 mm | 25 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 691 | 1.00 | 0.32 mm | 25 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 682 | 1.00 | 0.32 mm | 25 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 668 | 1.00 | 0.25 mm | 30 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 684 | 1.00 | 0.32 mm | 50 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 687 | 1.00 | 0.32 mm | 30 m | 0.35 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 689 | 1.00 | 0.32 mm | 60 m | 0.35 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 678 | 1.00 | 0.32 mm | 50 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 665 | 1.00 | 0.25 mm | 60 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 676 | 1.00 | 0.32 mm | 25 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 704 | 1.00 | 0.32 mm | 60 m | 3.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 697 | 1.00 | 0.32 mm | 25 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 701 | 1.00 | 0.32 mm | 25 m | 3.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 707 | 1.00 | 0.32 mm | 30 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 703 | 1.00 | 0.32 mm | 50 m | 3.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 699 | 1.00 | 0.32 mm | 50 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 692 | 1.00 | 0.32 mm | 30 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 693 | 1.00 | 0.32 mm | 50 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 688 | 1.00 | 0.32 mm | 50 m | 0.35 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 683 | 1.00 | 0.32 mm | 30 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 673 | 1.00 | 0.25 mm | 50 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 686 | 1.00 | 0.32 mm | 25 m | 0.35 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 679 | 1.00 | 0.32 mm | 60 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 685 | 1.00 | 0.32 mm | 60 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 677 | 1.00 | 0.32 mm | 30 m | 0.10 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 672 | 1.00 | 0.25 mm | 30 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 694 | 1.00 | 0.32 mm | 60 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 667 | 1.00 | 0.25 mm | 25 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 698 | 1.00 | 0.32 mm | 30 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 664 | 1.00 | 0.25 mm | 50 m | 0.25 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 708 | 1.00 | 0.32 mm | 50 m | 5.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 669 | 1.00 | 0.25 mm | 50 m | 0.50 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 702 | 1.00 | 0.32 mm | 30 m | 3.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 671 | 1.00 | 0.25 mm | 25 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 | ||
| 9.003 700 | 1.00 | 0.32 mm | 60 m | 1.00 µm | Quartz glass | Nonpolar | G1,G2,G38 |
