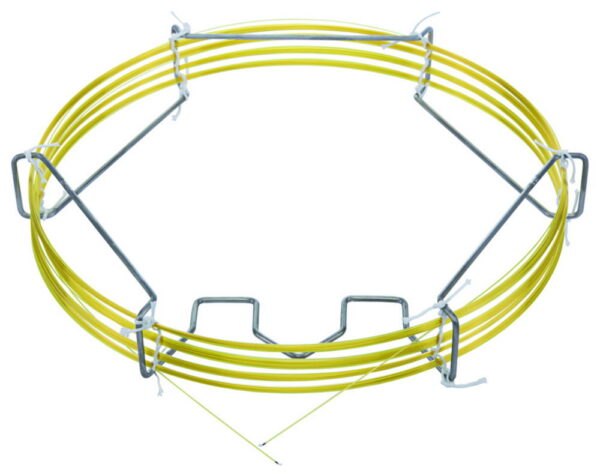

Optima® WAX capillary columns for GC
polyethylene glycol 20000 daltons
USP G16
polar phase
recommended for solvent analysis and alcohols
suitable for aqueous solutions
similar phases: Premabond® CW 20 M , DB-Wax, Supelcowax, HP-Wax, HP-INNOWAX, Rtx-Wax, CP-Wax 52 CB, Stabilwax, 007-CW, BP20, AT-Wax, ZB-Wax
Max. temperature for isothermal operation 240°C, max. temperature for short isotherms in a temperature programme: 250°C,
for 0.53 mm ID columns the max. temperatures are 220 and 240°C, resp.
Toote variatsioonid
| Catalog number | PK | Int. Ø | Length | Film thickness | Material column | Polarity | USP listing | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| 9.003 766 | 1.00 | 0.32 mm | 25 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 764 | 1.00 | 0.25 mm | 50 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 762 | 1.00 | 0.25 mm | 25 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 4.003 175 | 1.00 | 0.53 mm | 25 m | 1.00 µm | Quartz glass | Polar | G16 | ||
| 9.003 765 | 1.00 | 0.25 mm | 60 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 763 | 1.00 | 0.25 mm | 30 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 4.003 174 | 1.00 | 0.53 mm | 30 m | 2.00 µm | Quartz glass | Polar | G16 | ||
| 9.003 767 | 1.00 | 0.32 mm | 30 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 771 | 1.00 | 0.32 mm | 30 m | 0.50 µm | Quartz glass | Polar | G16 | ||
| 9.003 768 | 1.00 | 0.32 mm | 50 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 770 | 1.00 | 0.32 mm | 25 m | 0.50 µm | Quartz glass | Polar | G16 | ||
| 9.003 772 | 1.00 | 0.32 mm | 50 m | 0.50 µm | Quartz glass | Polar | G16 | ||
| 9.003 769 | 1.00 | 0.32 mm | 60 m | 0.25 µm | Quartz glass | Polar | G16 | ||
| 9.003 773 | 1.00 | 0.32 mm | 60 m | 0.50 µm | Quartz glass | Polar | G16 | ||
| 4.003 176 | 1.00 | 0.53 mm | 30 m | 1.00 µm | Quartz glass | Polar | G16 |
