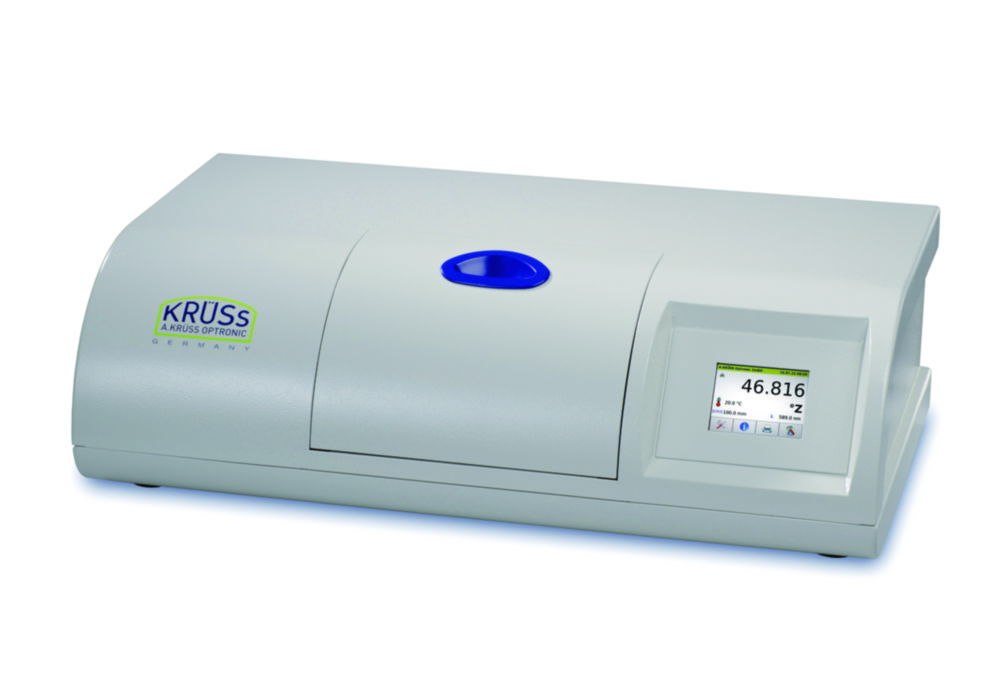

Polarimeter P3000

Technologically high-quality polarimeter for standard applications for which a measurement accuracy of ±0.01° is sufficient and a temperature control can be omitted. Typically, the P3000 is used in the quality control of food industry.

• Measurement of optical rotation
• Very short measurement time of approx. 1 s
• Easy, menu-driven adjustment
• Display of measured values in optical rotation or international sugar scale
• Suitable tubes for any type of sample
• Measurement up to an optical density of 3.0
• Temperature measurement with calibratable temperature sensor
• Reliable temperature compensation
• Chemical-resistant measurement tubes
• Compliance with GMP/GLP, pharmacopoeias [USP, BP, JP, Ph. Eur. (with tempering)], FDA, ISO, HACCP, OIML, ASTM, ICUMSA, NIST

• Specifications
• Scales: Optical rotation [°],
  int. sugar scale [°Z]
• Measuring range: ±90°
  ±259 °Z
• Resolution: 0.01°
  0.01 °Z
• Accuracy: ±0.01°
  ±0.01 °Z
• Measuring time: approx. 1 s (±90°)
• Light source: 1 LED with filter
• Wavelength: 589 nm
• Temperature range: 0 … 99.9 °C
• Resolution: 0.1 °C
• Accuracy: ±0.2 °C
• Dimensions (W x D x H): 640 x 360 x 200 mm
• Weight: 28 kg
• Power supply: 100 … 250 V, 50/60 Hz
