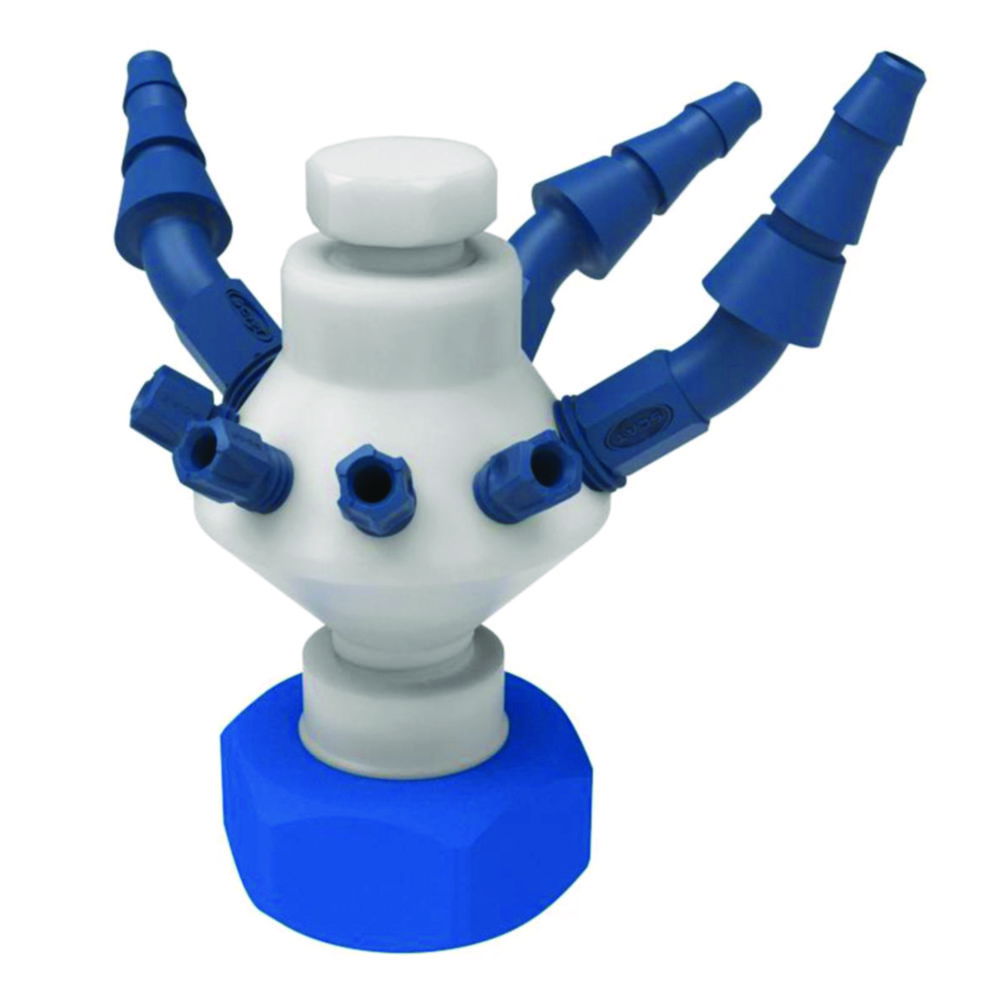

Safety waste cap Mini-LISA
With the modular system for HPLC waste, connections and components can be added individually as required.
Scope of supply: Screw cap, 3 x PP tube connectors 5 – 11.5 mm, PFA fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm, 4 x PFA blind plugs for HPLC connections, 3 x PP blind plugs for tube connections, 1 PTFE blind plug for exhaust air filter connection, GL 14
Toote variatsioonid
| Hose connections | Material | No. of fittings | No. of olives | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 3 | PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | 4.715 027 | GL28 | 1.00 | ||
| 3 | PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | 4.715 030 | S40 | 1.00 | ||
| 3 | PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | 4.710 609 | 38-430 | 1.00 | ||
| 3 | PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | 4.715 029 | GL38 | 1.00 | ||
| 3 | PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | 4.715 028 | GL32 | 1.00 |
