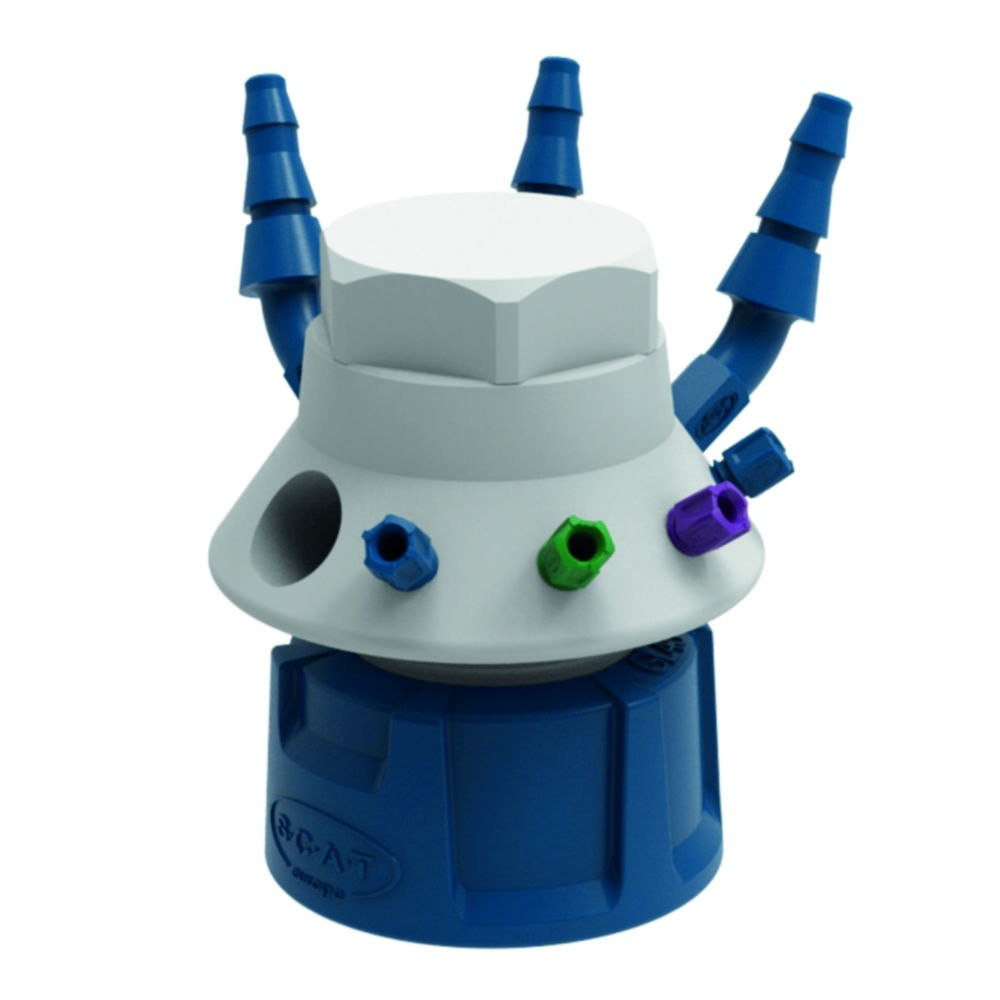

Safety Waste Caps V3.0
Safety Waste Cap for connecting 4 capillaries (UNF 1/4″ 28 G), 3 tube connectors (NPT 1/8″) and an exhaust filter (GL 14). With freely movable cap for simple exchange of the container.
Scope of supply: Screw cap (PPS), satellite (PTFE, white), blind plug M 30×35 (PTFE), PFA fittings: 4 x 1.6 mm (green), 4 x 2.3 mm (violet), 4 x 3.2 mm (blue), 4 blind plugs for capillary connections (PFA, transparent), 3 tube connectors for tubes with 5.0 – 11.5 mm ID (PP, blue), 3 blind plugs for tube connections (PTFE, white), 1 blind plug GL 14 (PTFE, white)
Toote variatsioonid
| Catalog number | PK | Hose connections | Material | No. of fittings | No. of olives | Thread | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 4.683 850 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | GL 45 | ||
| 4.683 888 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | B 53 | ||
| 4.683 891 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | B 63 | ||
| 4.683 889 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 55 | ||
| 4.683 887 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 51 | ||
| 4.683 893 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 70/71 | ||
| 4.683 892 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 65 | ||
| 4.683 896 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 95 | ||
| 4.683 895 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 90 | ||
| 4.683 890 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 60/61 | ||
| 4.683 894 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | B 83 | ||
| 4.683 886 | 1.00 | 3 | PPS/PTFE | 4 x 1,6/ 2,3/ 3,2 mm | 3 | S 50 |
