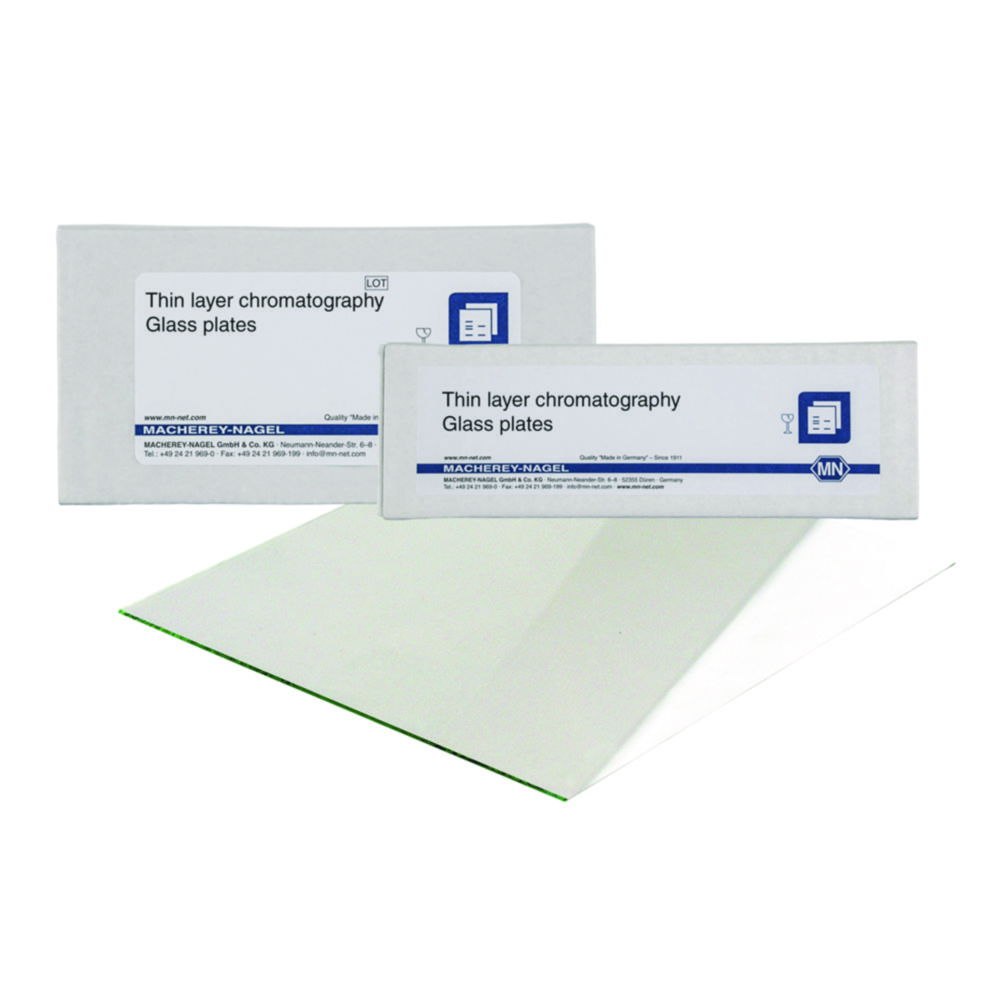

SIL G unmodified standard silica layers for TLC, glass plates/ POLYGRAM®
Glass plates, POLYGRAM®, ALUGRAM®
- Silica 60
- Specific surface (BET) ~500 m²/g
- Mean pore size 60 Å
- Specific pore volume 0.75 ml/g
- Particle size 5 to 17 µm
- Standard grade
- Thickness of layer for analytical plates 0.25 mm, for preparative plates 0.5 and 1 mm
- For 2 mm preparative layers a slightly coarser material is used, indicators: manganese activated zinc silicate with green fluorescence for short-wave UV (254 nm)
- Binders: highly polymeric products, which are stable in almost all organic solvents and resistant towards aggressive visualisation reagents
- Binder system for Polygram® sheets is also completely stable in purely aqueous eluents
- Available as glass plates, Polygram polyester sheets and Alugram aluminium sheets
- Available with or without fluorescent indicator (UV 254)
Toote variatsioonid
| Type | Plate format cm | Gel thickness mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|
| POLYGRAM® polyester sheets SIL G UV254 | 2.5 x 7.5 | 0.20 | 4.004 826 | 200.00 | ||
| POLYGRAM® polyester sheets SIL G UV254 | 40 x 20 | 0.20 | 4.004 824 | 25.00 | ||
| POLYGRAM® polyester sheets SIL G | 40 x 20 | 0.20 | 4.004 822 | 25.00 | ||
| Glass plates SIL G-25 UV254 | 5 x 10 | 0.25 | 4.004 848 | 50.00 | ||
| Glass plates SIL G-100 | 20 x 20 | 1.00 | 4.004 853 | 15.00 | ||
| ALUGRAM® aluminium sheets SIL G | 5 x 7.5 | 0.20 | 4.005 042 | 20.00 | ||
| POLYGRAM® polyester sheets SIL G | 2.5 x 7.5 | 0.20 | 4.004 827 | 200.00 | ||
| Glass plates SIL G-25 | 5 x 10 | 0.25 | 4.004 847 | 200.00 | ||
| POLYGRAM® polyester sheets SIL G | 4 x 8 | 0.20 | 4.004 825 | 50.00 | ||
| ALUGRAM® aluminium sheets SIL G | 10 x 20 | 0.20 | 4.005 052 | 20.00 | ||
| Glass plates SIL G-200 | 20 x 20 | 2.00 | 6.224 417 | 12.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 5 x 7.5 | 0.20 | 6.227 948 | 20.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 10 x 20 | 0.20 | 6.233 568 | 20.00 | ||
| POLYGRAM® polyester sheets SIL G | 5 x 20 | 0.20 | 6.803 651 | 50.00 | ||
| ALUGRAM® aluminium sheets Xtra SIL G UV254 | 4 x 8 | 0.20 | 6.259 756 | 50.00 | ||
| Glass plates SIL G-25 UV254 | 10 x 10 | 0.25 | 9.003 474 | 25.00 | ||
| ALUGRAM® aluminium sheets SIL G | 5 x 20 | 0.20 | 7.084 918 | 50.00 | ||
| ALUGRAM® aluminium sheets Xtra SIL G UV254 | 5 x 10 | 0.20 | 7.638 354 | 50.00 | ||
| Glass plates SIL G-25 UV254 | 20 x 20 | 0.25 | 9.003 492 | 25.00 | ||
| Glass plates SIL G-25 UV254 | 5 x 10 | 0.25 | 4.004 849 | 200.00 | ||
| POLYGRAM® polyester sheets SIL G UV254 | 20 x 20 | 0.20 | 9.003 494 | 25.00 | ||
| ALUGRAM® aluminium sheets Xtra SIL G | 20 x 20 | 0.20 | 9.003 465 | 25.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 5 x 20 | 0.20 | 9.003 478 | 50.00 | ||
| Glass plates SIL G-25 | 20 x 20 | 0.25 | 9.003 491 | 25.00 | ||
| POLYGRAM® polyester sheets SIL G UV254 | 5 x 20 | 0.20 | 9.003 476 | 50.00 | ||
| POLYGRAM® polyester sheets SIL G UV254 | 4 x 8 | 0.20 | 9.003 493 | 50.00 | ||
| ALUGRAM® aluminium sheets SIL G | 20 x 20 | 0.20 | 7.059 745 | 25.00 | ||
| ALUGRAM® aluminium sheets Xtra SIL G UV254 | 20 x 20 | 0.20 | 6.242 312 | 25.00 | ||
| ALUGRAM® aluminium sheets SIL G | 5 x 10 | 0.20 | 6.802 883 | 50.00 | ||
| Glass plates SIL G-200 UV254 | 20 x 20 | 2.00 | 4.004 854 | 12.00 | ||
| Glass plates SIL G-25 UV254 | 10 x 20 | 0.25 | 6.230 274 | 50.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 4 x 8 | 0.20 | 9.003 496 | 50.00 | ||
| Glass plates SIL G-25 | 10 x 20 | 0.25 | 6.227 917 | 50.00 | ||
| POLYGRAM® polyester sheets SIL G | 20 x 20 | 0.20 | 6.202 190 | 25.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 20 x 20 | 0.20 | 9.003 497 | 25.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 5 x 10 | 0.20 | 9.003 477 | 50.00 | ||
| ALUGRAM® aluminium sheets SIL G UV254 | 2.5 x 7.5 | 0.20 | 4.005 043 | 200.00 | ||
| Glass plates SIL G-25 | 5 x 20 | 0.25 | 4.004 846 | 100.00 | ||
| Glass plates SIL G-25 UV254 | 5 x 20 | 0.25 | 6.232 660 | 100.00 | ||
| Glass plates SIL G-25 | 5 x 10 | 0.25 | 6.230 729 | 50.00 | ||
| Glass plates SIL G-100 UV254 | 20 x 20 | 1.00 | 7.300 555 | 15.00 |
