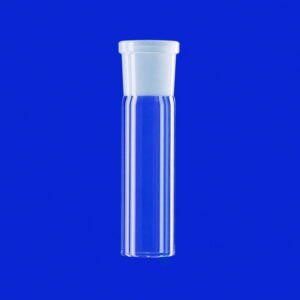

Sockets / Cones with NS joint, DURAN® tubing
Made of DURAN® tubing. DIN 12249 and in addition to DIN standard (*).
Toote variatsioonid
| Description | NS | Length mm | Outer diam. mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| Cone | 5/20* | 115 | 4 | 6.070 542 | 1.00 | ||
| Socket | 50/42 | 145 | 54 | 6.072 613 | 1.00 | ||
| Cone with tip | 60/46 | 160 | 54 | 6.073 068 | 1.00 | ||
| Cone with drip tip | 19/26 | 120 | 17 | 6.072 150 | 1.00 | ||
| Cone with tip | 12 / 21 | 130 | 11 | 6.072 920 | 1.00 | ||
| Socket | 40/38* | 130 | 44 | 6.202 446 | 1.00 | ||
| Cone | 19/38* | 140 | 17 | 7.606 908 | 1.00 | ||
| Cone | 10 / 19 | 115 | 8 | 9.011 503 | 1.00 | ||
| Socket | 19/38* | 120 | 22 | 7.606 907 | 1.00 | ||
| Cone with tip | 40/38* | 145 | 36 | 6.202 386 | 1.00 | ||
| Cone | 19/26 | 130 | 17 | 9.011 506 | 1.00 | ||
| Cone | 50/42 | 145 | 46 | 7.630 287 | 1.00 | ||
| Cone | 14/23 | 130 | 13 | 9.011 505 | 1.00 | ||
| Cone | 85/55 | 180 | 80 | 9.011 513 | 1.00 | ||
| Socket | 19/26 | 130 | 22 | 9.011 526 | 1.00 | ||
| Cone | 10/30* | 115 | 8 | 6.222 104 | 1.00 | ||
| Cone | 34/45* | 140 | 30 | 6.401 432 | 1.00 | ||
| Socket | 29/32 | 210 | 33 | 6.303 190 | 1.00 | ||
| Socket | 12 / 21 | 130 | 15 | 9.011 524 | 1.00 | ||
| Cone with outlet | 60/46 | 160 | 54 | 6.228 071 | 1.00 | ||
| Socket | 29/32 | 130 | 33 | 9.011 528 | 1.00 | ||
| Socket | 14/23 | 130 | 17 | 9.011 525 | 1.00 | ||
| Socket | 10 / 19 | 130 | 13 | 9.011 523 | 1.00 | ||
| Cone with outlet | 19/26 | 130 | 17 | 9.011 546 | 1.00 | ||
| Socket | 24/29 | 130 | 28 | 9.011 527 | 1.00 | ||
| Cone | 29/32 | 130 | 26 | 9.011 508 | 1.00 | ||
| Socket | 34/35 | 130 | 40 | 9.011 529 | 1.00 | ||
| Cone | 45/40 | 145 | 40 | 9.011 510 | 1.00 | ||
| Cone | 71/51 | 180 | 65 | 9.011 512 | 1.00 | ||
| Socket | 60/46 | 165 | 65 | 9.011 531 | 1.00 | ||
| Socket | 85/55 | 185 | 90 | 9.011 533 | 1.00 | ||
| Socket | 45/40 | 280 | 48 | 6.303 189 | 1.00 | ||
| Cone with outlet | 10 / 19 | 115 | 8 | 6.238 757 | 1.00 | ||
| Cone | 5/13 | 115 | 4 | 9.011 501 | 1.00 | ||
| Cone | 14/35* | 140 | 13 | 6.900 898 | 1.00 | ||
| Socket | 55/44 | 145 | 60 | 6.224 163 | 1.00 | ||
| Socket | 45/40 | 145 | 50 | 9.011 530 | 1.00 | ||
| Socket | 71/51 | 165 | 75 | 9.011 532 | 1.00 | ||
| Cone with drip tip | 14/23 | 120 | 13 | 6.225 248 | 1.00 | ||
| Cone | 24/29 | 130 | 22 | 9.011 507 | 1.00 | ||
| Cone | 55/44 | 145 | 50 | 7.630 288 | 1.00 | ||
| Cone with outlet | 14/23 | 130 | 13 | 9.011 545 | 1.00 | ||
| Cone with outlet | 29/32 | 130 | 26 | 9.011 548 | 1.00 | ||
| Cone with outlet | 45/40 | 145 | 40 | 9.011 550 | 1.00 | ||
| Socket | 5/13 | 120 | 8 | 9.011 521 | 1.00 | ||
| Cone | 34/35 | 130 | 30 | 9.011 509 | 1.00 | ||
| Socket | 7/16 | 120 | 10 | 9.011 522 | 1.00 | ||
| Cone | 29/42* | 140 | 26 | 6.203 538 | 1.00 | ||
| Cone | 12 / 21 | 130 | 11 | 9.011 504 | 1.00 | ||
| Cone | 60/46 | 160 | 54 | 9.011 511 | 1.00 | ||
| Cone | 7/16 | 115 | 6 | 9.011 502 | 1.00 | ||
| Cone with outlet | 24/29 | 130 | 22 | 9.011 547 | 1.00 |
