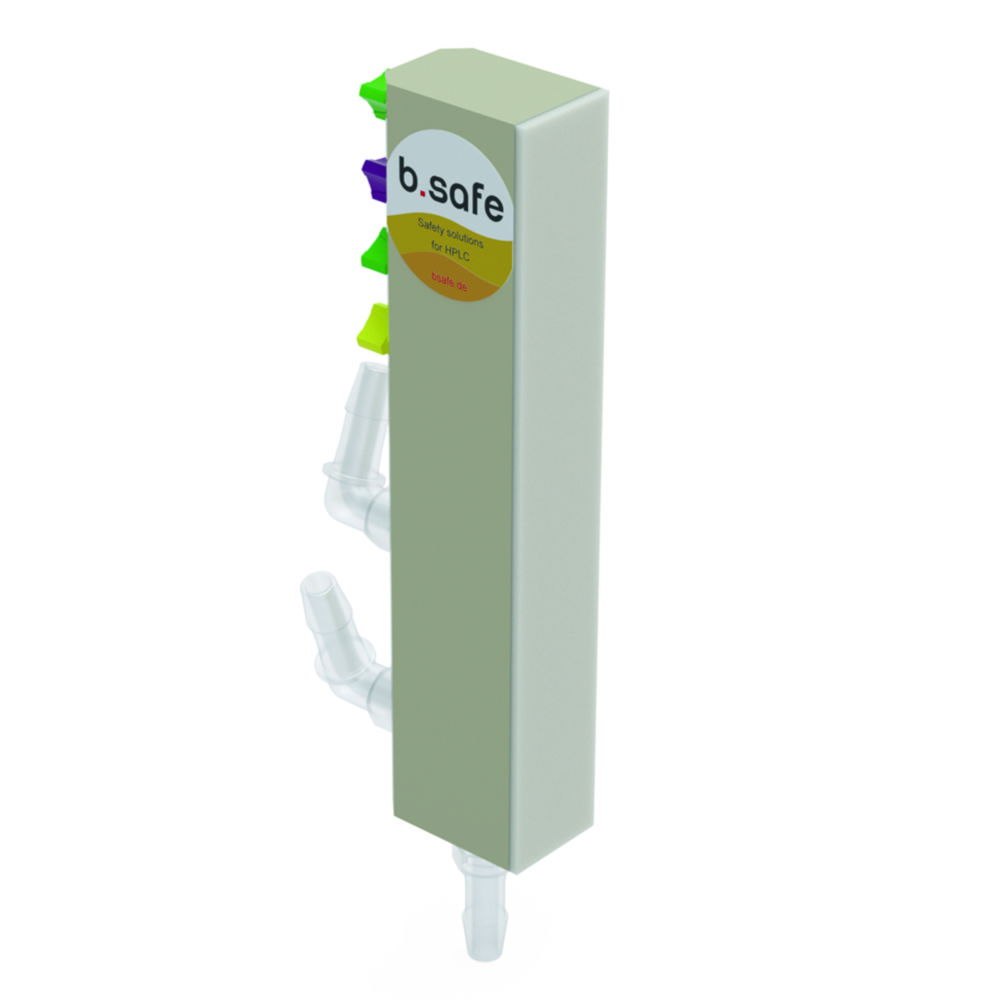

Table distributor b.safe, PP, with silicone-free adhesive pad

Central waste collection from several HPLC systems. Capillaries and tubes are connected without kinks using the fittings (thread UNF 1/4“) and tube connectors (thread NPT 1/8“) included in the scope of supply. The liquid solvent waste flows off directly and residue-free via the vertical hole inside the table distributor. Easy attachment to the worktable, either by magnet or silicone-free adhesive pad.

Toote variatsioonid

Hose connectionsMaterialNo. of blind plugsNo. of fittingsNo. of
olives
Catalog numberPKKogus
3PP64 x 1,6/ 2,2/ 3,2 mm2 x 6 ... 8 mm, 90°, 1 x 6 ... 8 mm6.491 9881.00
5PP128 x 1,6/2,2/3,2 mm4 x 6 ... 8 mm, 90°, 1 x 6 ... 8 mm6.491 9891.00
