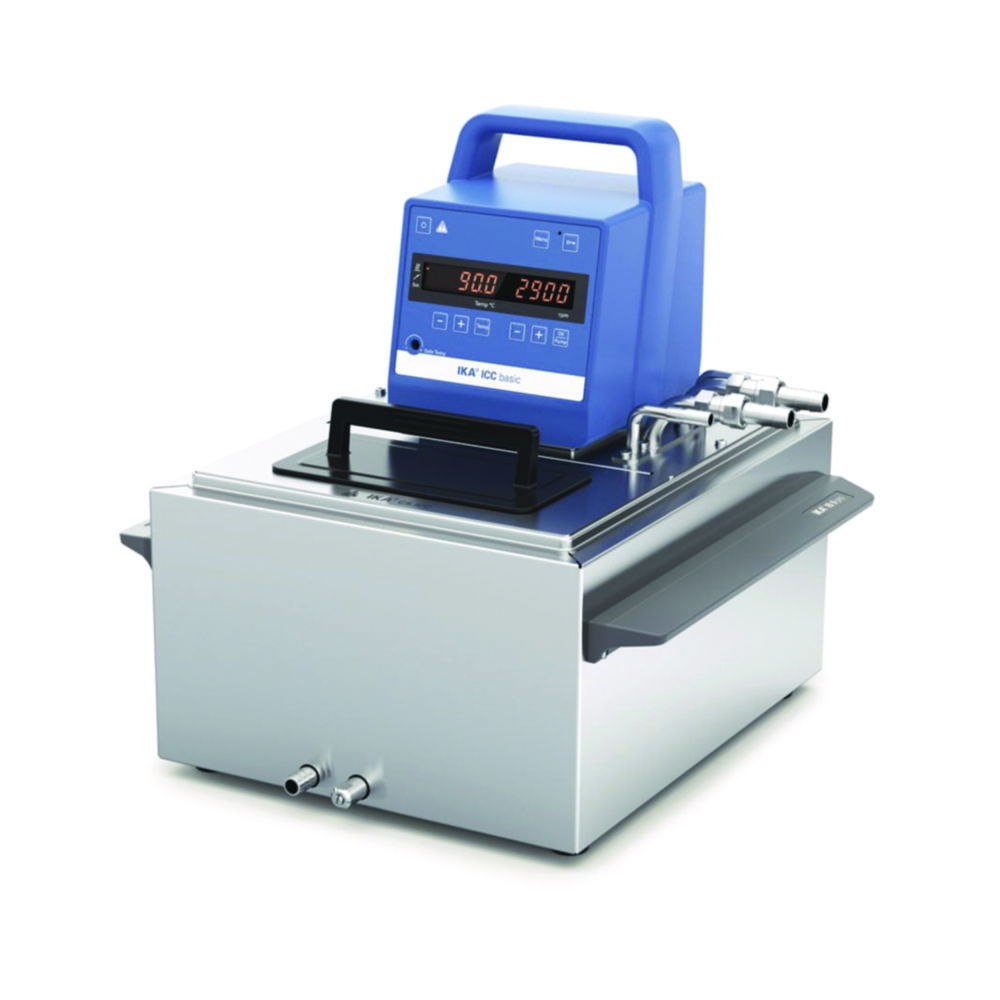

Temperature control systems ICC basic pro c, with stainless steel bath
Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath and all required accessories. For temperature control in a stainless steel bath tank up to a temperature of 150 °C. Suitable for internal and external applications.
- Visual and acoustic warning functions for excess temperature, sub-level/over-level
- LED display for temperature and pump adjustment
- Menu navigation via push and turn buttons
- Adjustable safety circuit
- Calibration option
- USB/RS 232 interface
Scope of supply: compact immersion thermostat, stainless steel bath, bath bridge, cover, pump connection set, cooling coil
Toote variatsioonid
| Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Catalog number | Power supply | Temp. Stability | Temperature | Temperature | Type | Type of display | Volume bath | Weight | Width opening | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 mm | 374 x 377 x 388 mm | 377 mm | 388 mm | 374 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 9 l | -10 °C | 4.656 132 | 230 V, 50...60 Hz | 0,02 °C | RT | RT+10 ... 150 °C | ICC basic pro 9 c | LED | 9 l | 15.1 kg | 195 mm | 1.00 | |||
| 309 mm | 354 x 641 x 388 mm | 641 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 20 l | -10 °C | 4.656 134 | 230 V, 50...60 Hz | 0,02 °C | RT | RT+10 ... 150 °C | ICC basic pro 20 c | LED | 20 l | 18.2 kg | 255 mm | 1.00 | |||
| 127 mm | 354 x 461 x 388 mm | 461 mm | 388 mm | 354 mm | 2000 W | IP 21 | Stainless steel | 0.2 bar | 150 °C | 230 V | 12 l | -10 °C | 4.656 133 | 230 V, 50...60 Hz | 0,02 °C | RT | RT+10 ... 150 °C | ICC basic 12 c | LED | 12 l | 16.4 kg | 255 mm | 1.00 |
