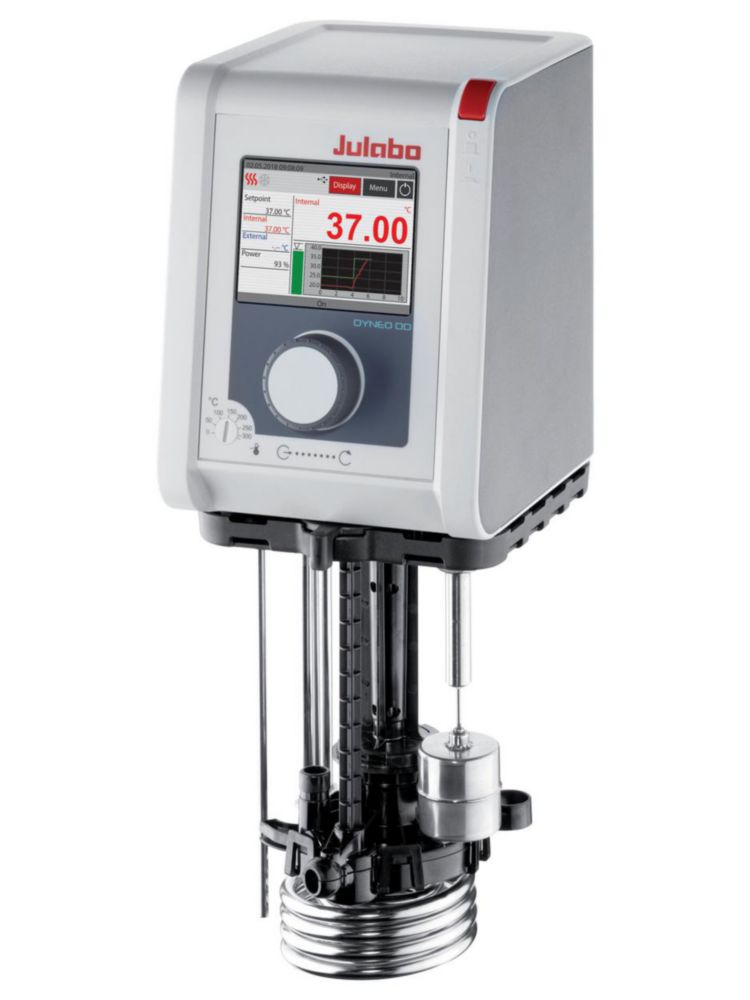

Thermoregulator DYNEO™ DD
For internal and external applications. The thermoregulators with maximum flexibility can be mounted with the sturdy bath clamp to any bath up to 50 litres.
- Easy switching between internal and external circulation
- Large colour TFT Display
- Easy to operate via central controller
- Integrated programmer for 8 x 60 program steps
- Continuously adjustable, powerful pressure pump
- USB interface
- External Pt100 sensor connection
- Class III (FL) acc. to DIN 12876-1
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | IP code | Max. flow rate | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Catalog number | Power supply | Temp. Stability | Temperature | Type | Type of display | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 mm | 132 x 160 x 355 mm | 2 kW | 355 mm | IP 21 | 200 °C | 230 V | -20 °C | 200 V | 4.663 220 | 200 ... 230 V, 50/60 Hz | ±0,01 °C | 20 ... 200 °C | DD | TFT | 2.5 kg | 132 mm | Yes | 1.00 |
