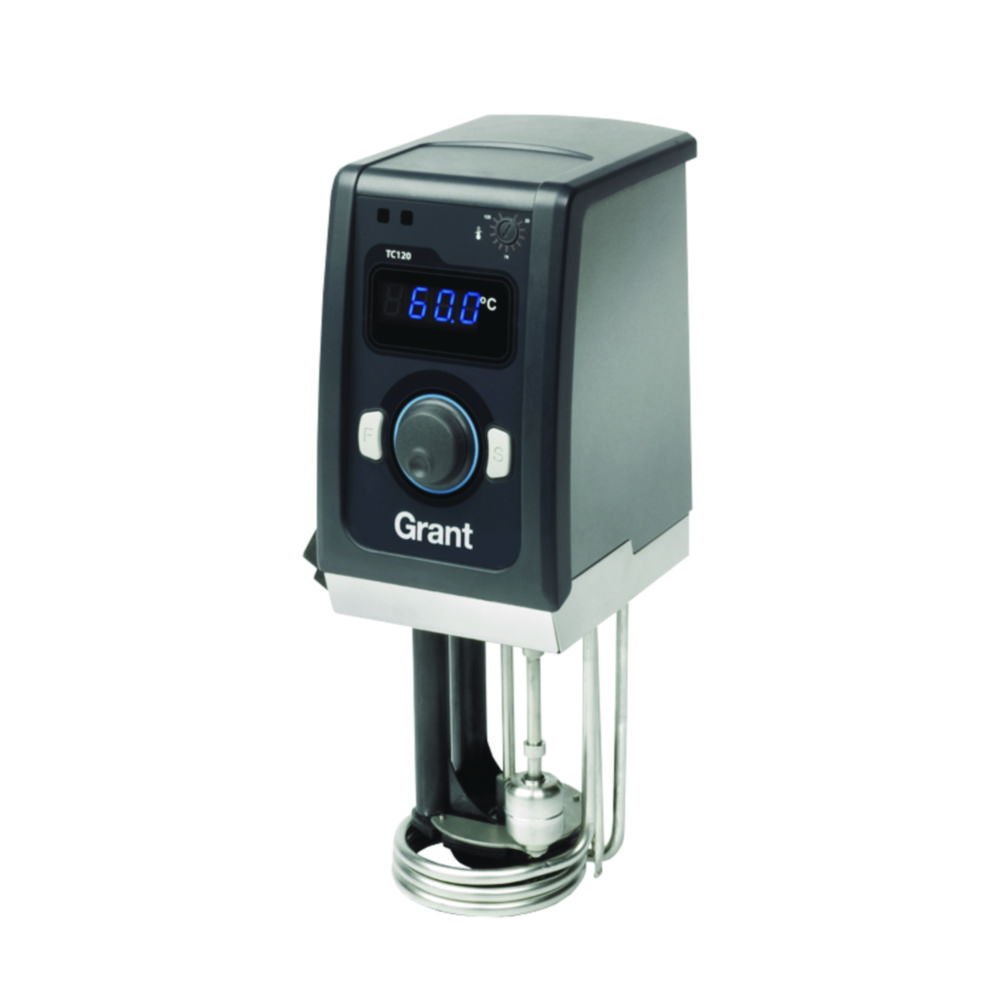

Thermostatic controller Optima™ TC120

Combine with a plastic or stainless steel tank or with an accessory T-clamp for independent use. The general purpose heating circulator offers excellent temperature stability and uniformity.

• Clear, bright 4 digit LED display
• 3 programmable temperature pre-sets
• Visual and audible alarm
• Timer from 1 min to 99 h 59 min
• 2 point recalibration
• Adjustable over temperature cut-out
• Pump for external circulation

For use at temperatures below RT, the C1G or C2G cooler must be ordered additionally.

Models with clamps available on request.

• Specifications
  Temperature range with stainless steel tank
• T100:
  TC120: 0°C to +100°C*
  -15°C to +120°C*
• Stability / Uniformity (DIN 12876) at 70°C: ±0.05°C / ±0.1°C
• Setting resolution: 0.1°C
• Display: 4 digit LED
• No. of pre-set temperatures: 3
• Recalibration points: 2
• Heating power (230V): 1.3 kW
• Power supply (230V / 50-60Hz): 1.4 kW
• TC120 only:
• Timer: 1 to 6000 mins
• Pump max. pressure: 210 mbar
• Flow rate max.: 16 l/min
