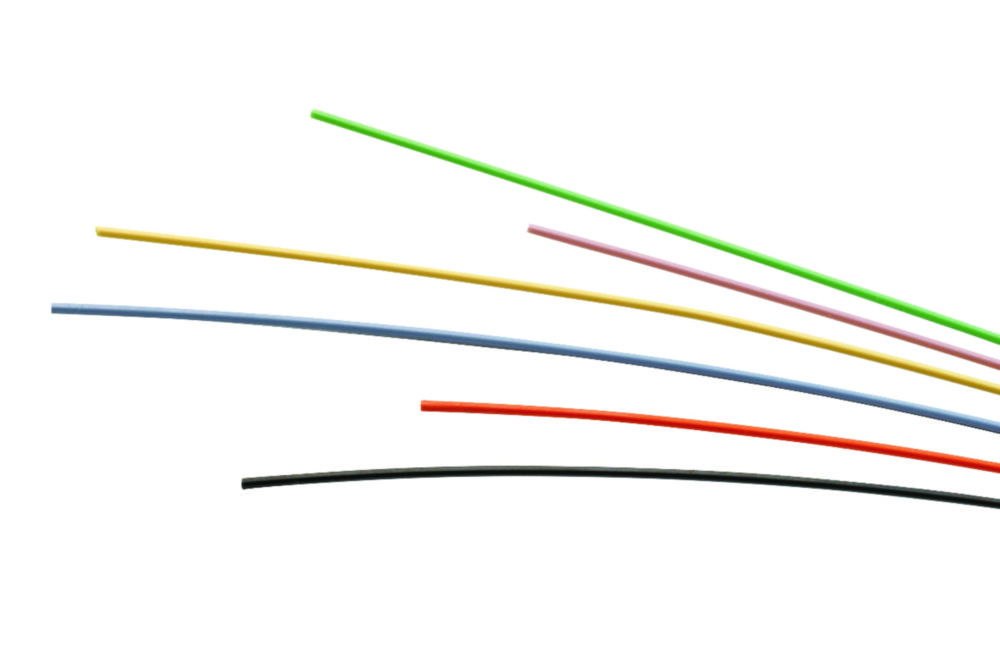

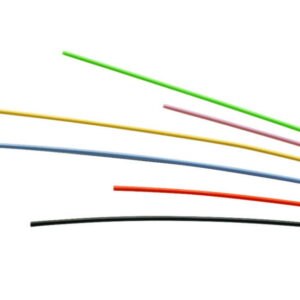

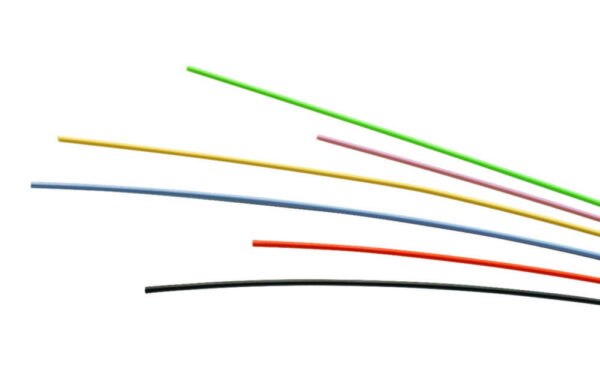

Tubing, PEEK, 100F
- Tube length 30.5 m
Toote variatsioonid
| Colour | Length m | Int. diam. mm | Operating pressure bar | Outer diam. mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| yellow | 30.5 | 0.18 | 483 | 1.6 | 4.662 792 | 1.00 | ||
| grey | 30.5 | 0.38 | 276 | 0.8 | 4.682 176 | 1.00 | ||
| blue | 30.5 | 0.25 | 483 | 1.6 | 4.662 793 | 1.00 | ||
| blue | 30.5 | 0.25 | 345 | 0.8 | 4.682 175 | 1.00 | ||
| yellow | 30.5 | 0.15 | 138 | 0.36 | 4.682 182 | 1.00 | ||
| grey | 30.5 | 0.38 | 483 | 1.6 | 4.682 168 | 1.00 | ||
| red | 30.5 | 0.1 | 138 | 0.36 | 4.682 180 | 1.00 | ||
| red | 30.5 | 0.13 | 345 | 0.8 | 4.682 173 | 1.00 | ||
| Orange | 30.5 | 0.51 | 207 | 0.8 | 4.682 177 | 1.00 | ||
| black | 30.5 | 0.075 | 345 | 0.36 | 4.682 179 | 1.00 | ||
| green | 30.5 | 0.125 | 138 | 0.36 | 4.682 181 | 1.00 | ||
| Orange | 30.5 | 0.51 | 414 | 1.6 | 4.682 169 | 1.00 | ||
| natural | 30.5 | 1.6 | 276 | 3.2 | 4.682 183 | 1.00 | ||
| natural | 30.5 | 2.03 | 207 | 3.2 | 4.682 184 | 1.00 | ||
| natural | 30.5 | 0.063 | 483 | 1.6 | 4.682 185 | 1.00 | ||
| natural | 30.5 | 0.38 | 276 | 0.8 | 4.682 189 | 1.00 | ||
| black | 30.5 | 0.10 | 345 | 0.8 | 4.682 188 | 1.00 | ||
| yellow | 30.5 | 0.18 | 345 | 0.8 | 4.682 174 | 1.00 | ||
| natural | 30.5 | 0.05 | 345 | 0.36 | 4.682 178 | 1.00 | ||
| natural | 30.5 | 0.063 | 345 | 0.8 | 4.682 187 | 1.00 | ||
| green | 30.5 | 0.76 | 276 | 1.6 | 4.682 170 | 1.00 | ||
| natural | 30.5 | 1.02 | 207 | 1.6 | 4.682 172 | 1.00 | ||
| natural | 30.5 | 0.38 | 483 | 1.6 | 4.682 186 | 1.00 | ||
| Orange | 30.5 | 0.33 | 483 | 1.6 | 4.682 167 | 1.00 | ||
| black | 30.5 | 0.10 | 483 | 1.6 | 4.682 166 | 1.00 | ||
| red | 30.5 | 0.76 | 276 | 1.6 | 4.682 171 | 1.00 | ||
| red | 30.5 | 0.13 | 483 | 1.6 | 4.662 791 | 1.00 |
