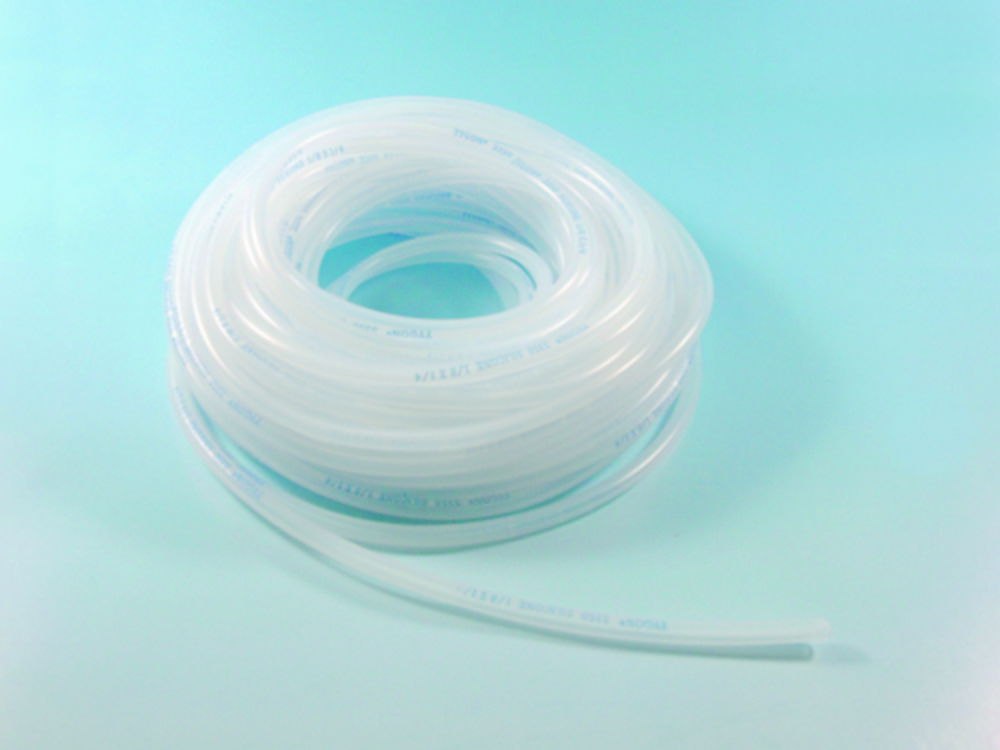

Tubing Tygon® 3350
Silicone-platinum tubing, Shore A 50. For sterile filling systems, chemistry and blood analyzers and liquid chromatography. Biocompatibility for sensitive applications. To FDA and USP Class VI, in accordance with ISO 10993.
- Temperature range -81 to 200°C
- Smooth inner surface
- High flexibility
- Ozone and UV resistant
Toote variatsioonid
| Catalog number | PK | Ext. Ø | Int. Ø | Shore hardness | Wall thickness | Kogus | |
|---|---|---|---|---|---|---|---|
| 6.241 068 | 15.00 | 5.6 mm | 2.4 mm | 50 A | 1.6 mm | ||
| 6.300 494 | 15.00 | 4.0 mm | 2.4 mm | 50 A | 0.8 mm | ||
| 6.079 778 | 15.00 | 4.8 mm | 1.6 mm | 50 A | 1.6 mm | ||
| 7.661 434 | 15.00 | 2.4 mm | 0.8 mm | 50 A | 0.8 mm | ||
| 6.231 907 | 15.00 | 11.2 mm | 8.0 mm | 50 A | 1.6 mm | ||
| 9.208 382 | 15.00 | 9.6 mm | 6.4 mm | 50 A | 1.6 mm | ||
| 9.208 383 | 15.00 | 11.2 mm | 6.4 mm | 50 A | 2.4 mm | ||
| 7.617 849 | 15.00 | 9.6 mm | 4.8 mm | 50 A | 2.4 mm | ||
| 6.257 248 | 15.00 | 20.7 mm | 15.9 mm | 50 A | 2.4 mm | ||
| 7.661 251 | 15.00 | 2.0 mm | 1.0 mm | 50 A | 0.5 mm | ||
| 6.242 854 | 15.00 | 6.4 mm | 4.8 mm | 50 A | 0.8 mm | ||
| 9.208 384 | 15.00 | 12.8 mm | 8.0 mm | 50 A | 2.4 mm | ||
| 9.208 385 | 15.00 | 12.7 mm | 9.5 mm | 50 A | 1.6 mm | ||
| 9.208 386 | 15.00 | 15.9 mm | 12.7 mm | 50 A | 1.6 mm | ||
| 9.208 380 | 15.00 | 6.4 mm | 3.2 mm | 50 A | 1.6 mm | ||
| 9.208 387 | 15.00 | 17.5 mm | 12.7 mm | 50 A | 2.4 mm | ||
| 6.281 628 | 15.00 | 4.8 mm | 3.2 mm | 50 A | 0.8 mm | ||
| 6.201 932 | 15.00 | 14.3 mm | 9.5 mm | 50 A | 2.4 mm | ||
| 6.300 493 | 15.00 | 3.2 mm | 1.6 mm | 50 A | 0.8 mm | ||
| 9.208 381 | 15.00 | 8.0 mm | 4.8 mm | 50 A | 1.6 mm | ||
| 7.635 456 | 15.00 | 19.1 mm | 12.7 mm | 50 A | 3.2 mm |
