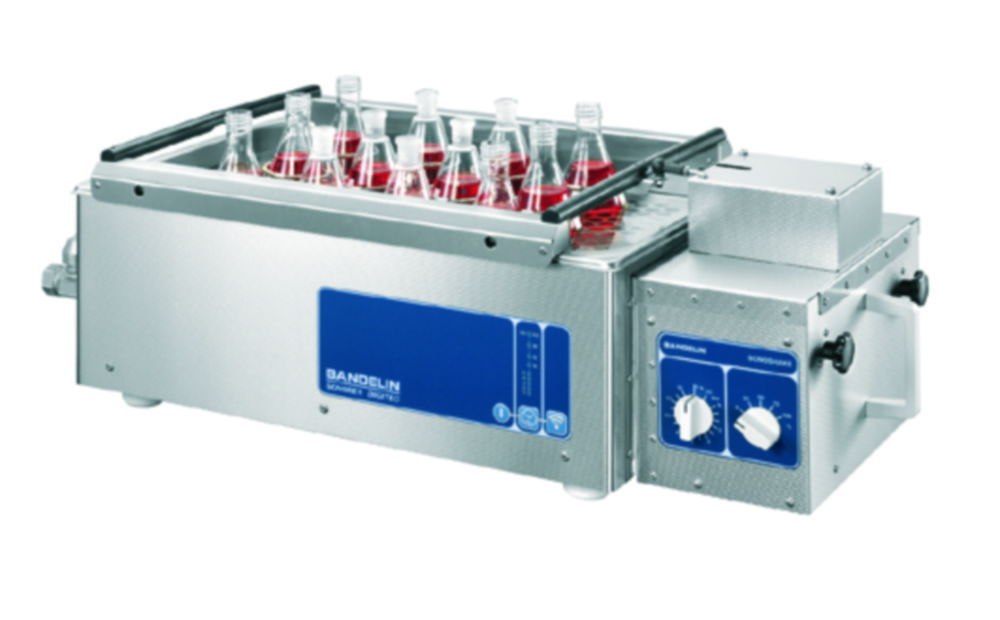

Ultrasonic Bath with Shaking Device SONOSHAKE
Consisting of:
Ultrasonic bath Sonorex Digitec DT 1028 F
- Especially for sonification of samples in laboratory flasks and for rapid degassing (DEGAS)
- Low-profile, ultrasonic bath with stainless steel tank, inner dimensions 500mm x 300mm x 65mm (L x W x D)
- Housing made of stainless steel, protected against spray, 535mm x 325mm x 205mm (L x W x H)
- Outlet: G½ ball valve
- Timer: 1, 2, 3, 4, 5, 10, 15, 30 min, or continuous
- Ultrasonic peak power 1280W
- Ultrasonic nominal power 320W
- Working frequency 35kHz, SweepTec®
- Current consumption 1.4A
Shaking device SA 1028
- Analogue setting of time (1 to 15 min, or continuous) and shaking frequency
- Reciprocating motion: settings in 4 steps possible of up to 200/min
- Constant amplitude of 20mm independent of loading
- Rack easy to remove – easy mounting of the laboratory clamps EK 10-250 (separately to order)
- Footprint approx. 410mm x 280mm (L x W)
- Holds 36 x 10ml, 36 x 25ml, 18 × 50ml, 12 x 100ml or 10 x 250ml flasks
- Bench space required for Sonoshake approx. 850mm x 360mm (L x W)
An existing SONOREX DIGITEC DT 1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.
Toote variatsioonid
| Catalog number | Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Ultrasonic power | Weight | IP code | Plug type | Type | Power supply | Max. voltage | Nominal capacity | With stopcock | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.877 864 | 300 mm | 325 mm | 205 mm | 535 mm | 65 mm | 500 mm | 320 W | 9.7 kg | IP 33 | EU | SONOSHAKE | 230 V, 50...60 Hz | 230 V | 9.5 l | Yes | 1.00 |
