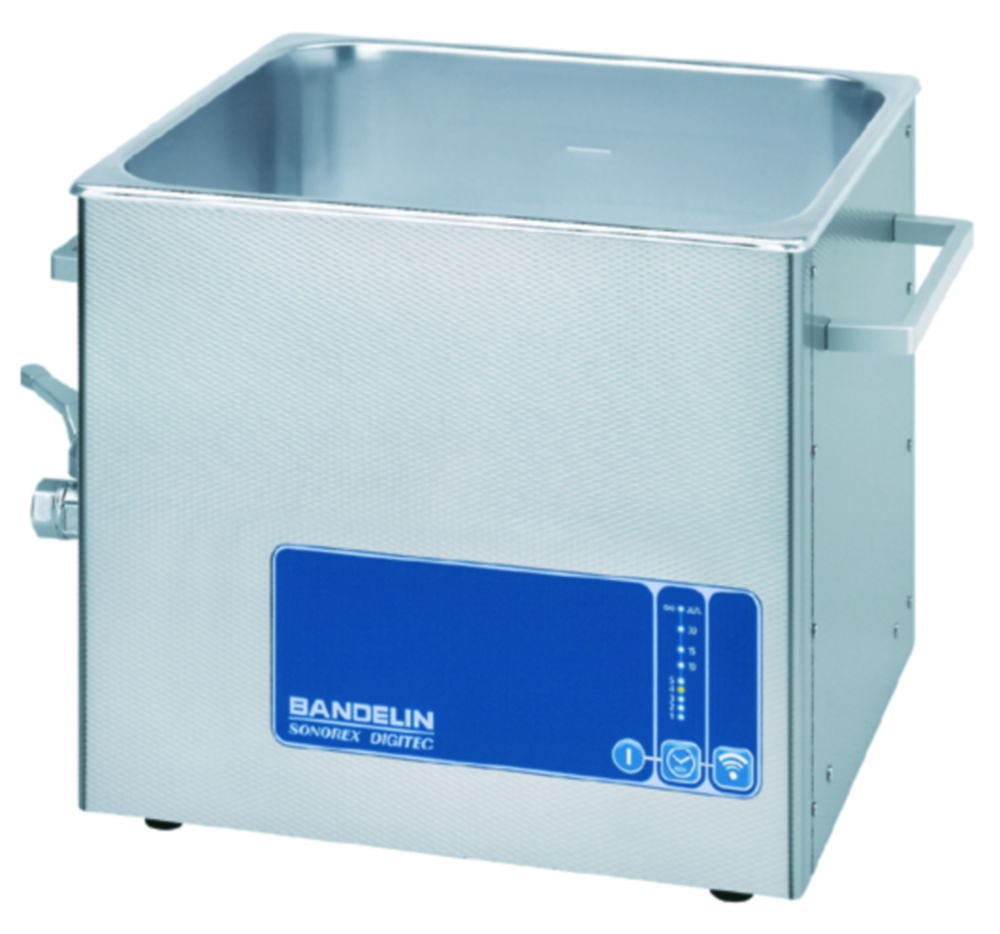

Ultrasonic Baths SONOREX DIGITEC, without heating
Ultrasonic baths in stainless steel housing, time setting 1, 2, 3, 4, 5, 10, 15, 30 min and continuous, warning LED at excess temperature, degassing of liquids (DEGAS), Pulse function, SweepTec®.
Toote variatsioonid
| Catalog number | Depth int. | Ext. depth | Ext. height | Ext. width | Height int. | Int. width | Ultrasonic power | Weight | IP code | Plug type | Type | Power supply | External dimensions (WxDxH) | Internal dimensions (WxDxH) | Max. voltage | Nominal capacity | With stopcock | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.877 854 | 300 mm | 325 mm | 400 mm | 535 mm | 200 mm | 500 mm | 300 W | 14.3 kg | IP 33 | EU | DT 1028 | 230 V, 50...60 Hz | 535 x 325 x 400 mm | 500 x 300 x 200 mm | 230 V | 28.0 l | Yes | 1.00 | ||
| 9.877 851 | 300 mm | 325 mm | 305 mm | 355 mm | 150 mm | 325 mm | 215 W | 8.2 kg | IP 33 | EU | DT 514 | 230 V, 50...60 Hz | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V | 13.5 l | Yes | 1.00 | ||
| 9.877 839 | 150 mm | 175 mm | 295 mm | 325 mm | 150 mm | 300 mm | 160 W | 5.2 kg | IP 33 | EU | DT 255 | 230 V, 50...60 Hz | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V | 5.5 l | Yes | 1.00 | ||
| 9.877 841 | 240 mm | 265 mm | 305 mm | 325 mm | 150 mm | 300 mm | 160 W | 7.0 kg | IP 33 | EU | DT 510 | 230 V, 50...60 Hz | 325 x 265 x 305 mm | 300 x 240 x 150 mm | 230 V | 9.7 l | Yes | 1.00 | ||
| 9.877 830 | 85 mm | 100 mm | 180 mm | 205 mm | 60 mm | 190 mm | 40 W | 1.8 kg | IP 33 | EU | DT 31 | 230 V, 50...60 Hz | 205 x 100 x 180 mm | 190 x 85 x 60 mm | 230 V | 0.9 l | No | 1.00 | ||
| 9.877 838 | 140 mm | 165 mm | 245 mm | 530 mm | 100 mm | 500 mm | 160 W | 6.1 kg | IP 33 | EU | DT 156 | 230 V, 50...60 Hz | 530 x 165 x 245 mm | 500 x 140 x 100 mm | 230 V | 6.0 l | Yes | 1.00 | ||
| 9.877 832 | 140 mm | 165 mm | 230 mm | 175 mm | 260 mm | 150 mm | 60 W | 2.6 kg | IP 33 | EU | DT 52 | 230 V, 50...60 Hz | 175 x 165 x 230 mm | 150 x 140 x 260 mm | 230 V | 1.8 l | No | 1.00 | ||
| 9.877 834 | 140 mm | 160 mm | 250 mm | 260 mm | 260 mm | 240 mm | 80 W | 3.4 kg | IP 33 | EU | DT 100 | 230 V, 50...60 Hz | 260 x 160 x 250 mm | 240 x 140 x 260 mm | 230 V | 3.0 l | No | 1.00 | ||
| 6.280 703 | 300 mm | 325 mm | 400 mm | 535 mm | 200 mm | 535 mm | 300 W | 14.3 kg | IP 33 | UK | DT 1028 | 230 V, 50...60 Hz | 535 x 325 x 400 mm | 535 x 300 x 200 mm | 230 V | 28.0 l | Yes | 1.00 | ||
| 6.493 233 | 150 mm | 265 mm | 305 mm | 325 mm | 150 mm | 300 mm | 160 W | 7.0 kg | IP 33 | UK | DT 510 | 230 V, 50...60 Hz | 325 x 265 x 305 mm | 300 x 150 x 150 mm | 230 V | 9.7 l | Yes | 1.00 | ||
| 6.522 733 | 300 mm | 325 mm | 305 mm | 355 mm | 150 mm | 325 mm | 160 W | 8.2 kg | IP 33 | UK | DT 514 | 230 V, 50...60 Hz | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V | 13.5 l | Yes | 1.00 | ||
| 4.720 025 | 85 mm | 100 mm | 180 mm | 230 mm | 260 mm | 190 mm | 40 W | 1.8 kg | IP 33 | CH | DT 31 | 230 V, 50...60 Hz | 230 x 100 x 180 mm | 190 x 85 x 260 mm | 230 V | 0.9 l | No | 1.00 | ||
| 4.720 026 | 85 mm | 100 mm | 180 mm | 230 mm | 260 mm | 190 mm | 40 W | 1.8 kg | IP 33 | UK | DT 31 | 230 V, 50...60 Hz | 230 x 100 x 180 mm | 190 x 85 x 260 mm | 230 V | 0.9 l | No | 1.00 | ||
| 4.720 028 | 140 mm | 165 mm | 230 mm | 175 mm | 260 mm | 150 mm | 60 W | 2.6 kg | IP 33 | US | DT 52 | 115 V, 50/60 Hz | 175 x 165 x 230 mm | 150 x 140 x 260 mm | 115 V | 1.8 l | No | 1.00 | ||
| 4.720 029 | 140 mm | 165 mm | 230 mm | 175 mm | 260 mm | 150 mm | 60 W | 2.6 kg | IP 33 | UK | DT 52 | 230 V, 50...60 Hz | 175 x 165 x 230 mm | 150 x 140 x 260 mm | 230 V | 1.8 l | No | 1.00 | ||
| 4.720 035 | 140 mm | 160 mm | 260 mm | 260 mm | 260 mm | 240 mm | 80 W | 3.4 kg | IP 33 | US | DT 100 | 115 V, 50/60 Hz | 260 x 160 x 260 mm | 240 x 140 x 260 mm | 115 V | 3.0 l | No | 1.00 | ||
| 4.720 036 | 140 mm | 160 mm | 260 mm | 260 mm | 260 mm | 240 mm | 80 W | 3.4 kg | IP 33 | CH | DT 100 | 230 V, 50...60 Hz | 260 x 160 x 260 mm | 240 x 140 x 260 mm | 230 V | 3.0 l | No | 1.00 | ||
| 4.720 037 | 140 mm | 160 mm | 260 mm | 260 mm | 260 mm | 240 mm | 80 W | 3.4 kg | IP 33 | UK | DT 100 | 230 V, 50...60 Hz | 260 x 160 x 260 mm | 240 x 140 x 260 mm | 230 V | 3.0 l | No | 1.00 | ||
| 4.720 042 | 150 mm | 175 mm | 295 mm | 325 mm | 150 mm | 300 mm | 160 W | 5.2 kg | IP 33 | US | DT 255 | 115 V, 50/60 Hz | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 115 V | 5.5 l | Yes | 1.00 | ||
| 4.720 043 | 150 mm | 175 mm | 295 mm | 325 mm | 150 mm | 300 mm | 160 W | 5.2 kg | IP 33 | UK | DT 255 | 230 V, 50...60 Hz | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V | 5.5 l | Yes | 1.00 | ||
| 4.720 089 | 150 mm | 265 mm | 305 mm | 325 mm | 150 mm | 300 mm | 160 W | 7.0 kg | IP 33 | US | DT 510 | 115 V, 50/60 Hz | 325 x 265 x 305 mm | 300 x 150 x 150 mm | 115 V | 9.7 l | Yes | 1.00 | ||
| 4.720 090 | 150 mm | 265 mm | 305 mm | 325 mm | 150 mm | 300 mm | 160 W | 7.0 kg | IP 33 | CH | DT 510 | 230 V, 50...60 Hz | 325 x 265 x 305 mm | 300 x 150 x 150 mm | 230 V | 9.7 l | Yes | 1.00 | ||
| 4.720 096 | 300 mm | 325 mm | 305 mm | 355 mm | 150 mm | 325 mm | 160 W | 8.2 kg | IP 33 | US | DT 514 | 115 V, 50/60 Hz | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 115 V | 13.5 l | Yes | 1.00 | ||
| 4.720 097 | 300 mm | 325 mm | 305 mm | 355 mm | 150 mm | 325 mm | 160 W | 8.2 kg | IP 33 | CH | DT 514 | 230 V, 50...60 Hz | 355 x 325 x 305 mm | 325 x 300 x 150 mm | 230 V | 13.5 l | Yes | 1.00 | ||
| 4.720 110 | 140 mm | 165 mm | 245 mm | 530 mm | 100 mm | 500 mm | 160 W | 6.1 kg | IP 33 | US | DT 156 | 115 V, 50/60 Hz | 530 x 165 x 245 mm | 500 x 140 x 100 mm | 115 V | 6.0 l | Yes | 1.00 | ||
| 4.720 111 | 140 mm | 165 mm | 245 mm | 530 mm | 100 mm | 500 mm | 160 W | 6.1 kg | IP 33 | CH | DT 156 | 230 V, 50...60 Hz | 530 x 165 x 245 mm | 500 x 140 x 100 mm | 230 V | 6.0 l | Yes | 1.00 | ||
| 4.720 112 | 140 mm | 165 mm | 245 mm | 530 mm | 100 mm | 500 mm | 160 W | 6.1 kg | IP 33 | UK | DT 156 | 230 V, 50...60 Hz | 530 x 165 x 245 mm | 500 x 140 x 100 mm | 230 V | 6.0 l | Yes | 1.00 | ||
| 4.729 845 | 150 mm | 175 mm | 295 mm | 325 mm | 150 mm | 300 mm | 160 W | 5.2 kg | IP 33 | CH | DT 255 | 230 V, 50...60 Hz | 325 x 175 x 295 mm | 300 x 150 x 150 mm | 230 V | 5.5 l | Yes | 1.00 | ||
| 4.729 846 | 300 mm | 325 mm | 400 mm | 535 mm | 200 mm | 535 mm | 300 W | 14.3 kg | IP 33 | CH | DT 1028 | 230 V, 50...60 Hz | 535 x 325 x 400 mm | 535 x 300 x 200 mm | 230 V | 28.0 l | Yes | 1.00 |
