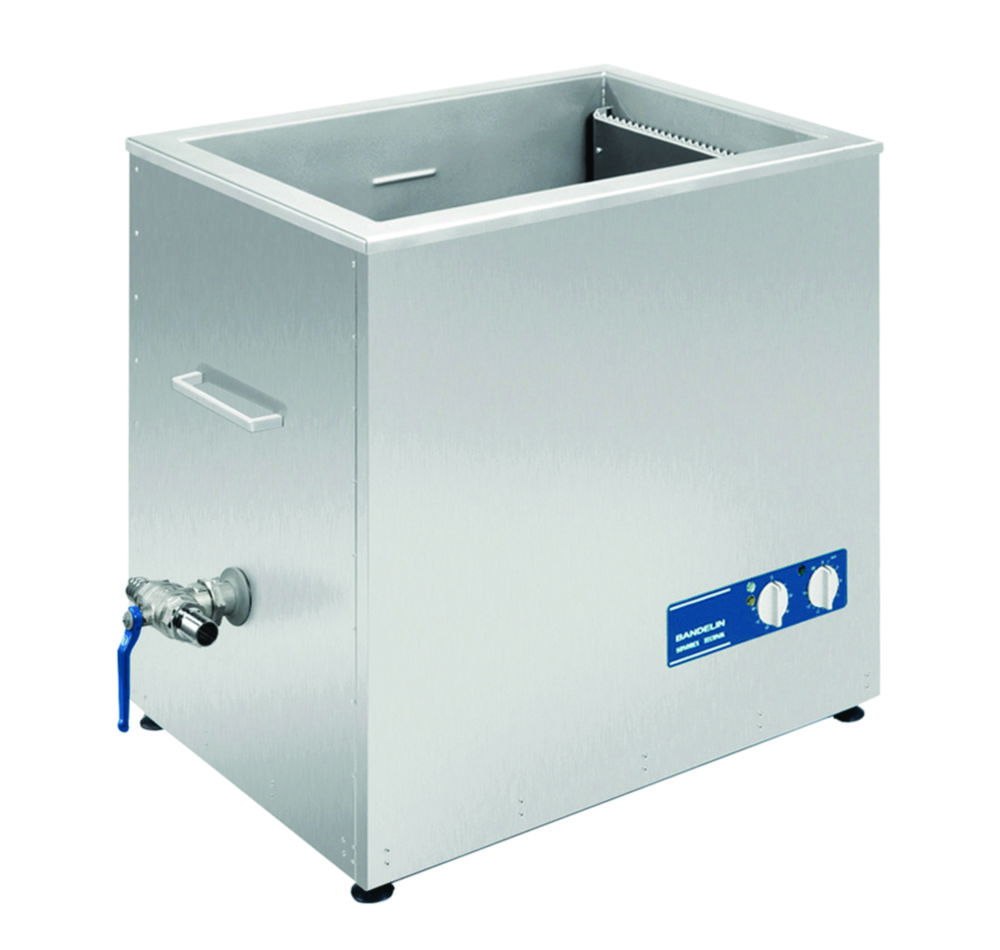

Ultrasonic baths SONOREX TECHNIK, with ultrasound and heating, even trough bottom

Ultrasonic baths for industry, service and maintenance. The welded ultrasonic tank made of stainless steel 1.4404, 2 mm thick, guarantees maximum durability even with intensive use. A modular design enables a wide range of configurations, ranging from individual cleaning tanks to complete cleaning lines. The integrated overflow pocket is used to connect an oil separator for separating cleaned oil films from the cleaning solution.

Spray tube for removing floating oils from the liquid surface into the overflow pocket

Level switch as dry-boil protection for heating and ultrasonic transmitter

Round bath corners on the sides and base make cleaning the bath easier

Height-adjustable feet

Toote variatsioonid

Catalog number	PK	Depth int.	Display	Ext. depth	Ext. height	Ext. width	Heating capacity	Height int.	Int. width	IP code	Max. temperature	Min. temperature	Nominal capacity	Operation	Type	Type of display	Ultrasonic power	Weight	With stopcock	Max. voltage	External dimensions (WxDxH)	Internal dimensions (WxDxH)	Power supply	Temperature	Plug type
9.877 573	1.00	450 mm	Analogue	550 mm	800 mm	780 mm	4800 W	450 mm	600 mm	IP 32	80 °C	-30 °C	110 l	Rotary knob	RM 110 UH	Without display	1000 W	72 kg	Yes	400 V·3/N/PE	780 x 550 x 800 mm	600 x 450 x 450 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
9.877 575	1.00	500 mm	Analogue	600 mm	800 mm	1180 mm	7200 W	400 mm	1000 mm	IP 32	80 °C	-30 °C	160 l	Rotary knob	RM 180 UH	Without display	2000 W	105 kg	Yes	400 V·3/N/PE	1,180 x 600 x 800 mm	1,000 x 500 x 400 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
9.877 577	1.00	650 mm	Analogue	750 mm	800 mm	930 mm	7200 W	500 mm	750 mm	IP 32	80 °C	-30 °C	210 l	Rotary knob	RM 210 UH	Without display	2000 W	110 kg	Yes	400 V·3/N/PE	930 x 750 x 800 mm	750 x 650 x 500 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
4.720 301	1.00	450 mm	Analogue	550 mm	800 mm	780 mm	4800 W	450 mm	600 mm	IP 32	80 °C	-30 °C	110 l	Rotary knob	RM 110 UH	Without display	1000 W	72 kg	Yes	400 V·3/N/PE	780 x 550 x 800 mm	600 x 450 x 450 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
4.720 307	1.00	500 mm	Analogue	600 mm	800 mm	1180 mm	7200 W	400 mm	1000 mm	IP 32	80 °C	-30 °C	160 l	Rotary knob	RM 180 UH	Without display	2000 W	105 kg	Yes	400 V·3/N/PE	1,180 x 600 x 800 mm	1,000 x 500 x 400 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
4.720 312	1.00	650 mm	Analogue	750 mm	800 mm	930 mm	7200 W	500 mm	750 mm	IP 32	80 °C	-30 °C	210 l	Rotary knob	RM 210 UH	Without display	2000 W	110 kg	Yes	400 V·3/N/PE	930 x 750 x 800 mm	750 x 650 x 500 mm	400 V·3/N/PE, 50/60 Hz	30 ... 80 °C	EU
