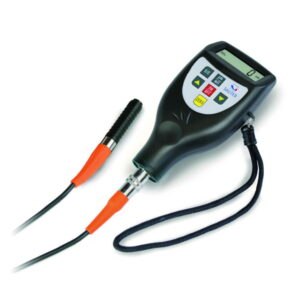

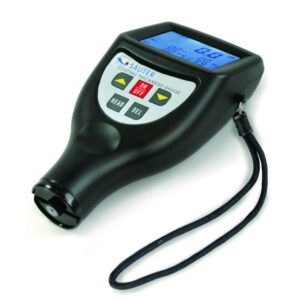

Ultrasonic thickness gauge TN-GOLD

For checking the authenticity of gold bars and coins. The SAUTER SSG software can be used to calculate the sound velocity for various precious metal alloys. This makes it possible to determine whether coins or ingots contain false cores or whether they consist of one and the same material.

  • Selectable measuring units: mm, inch
  • Internal memory for up to 20 files (with up to 100 values per file)
  • Battery operation
  • AUTO-OFF function
  • Data interface USB

Scope of supply:
Ultrasonic material thickness gauge, base plate for adjustment, carrying case

Toote variatsioonid

DepthDimensions (WxDxH)Frequency_numHeightCatalog numberPower supplyWidthPKKogus
74 mm150 x 74 x 32 mm7 MHz32 mm4.691 2102 x 1,5 V AA150 mm1.00
