Universal Waste Hub

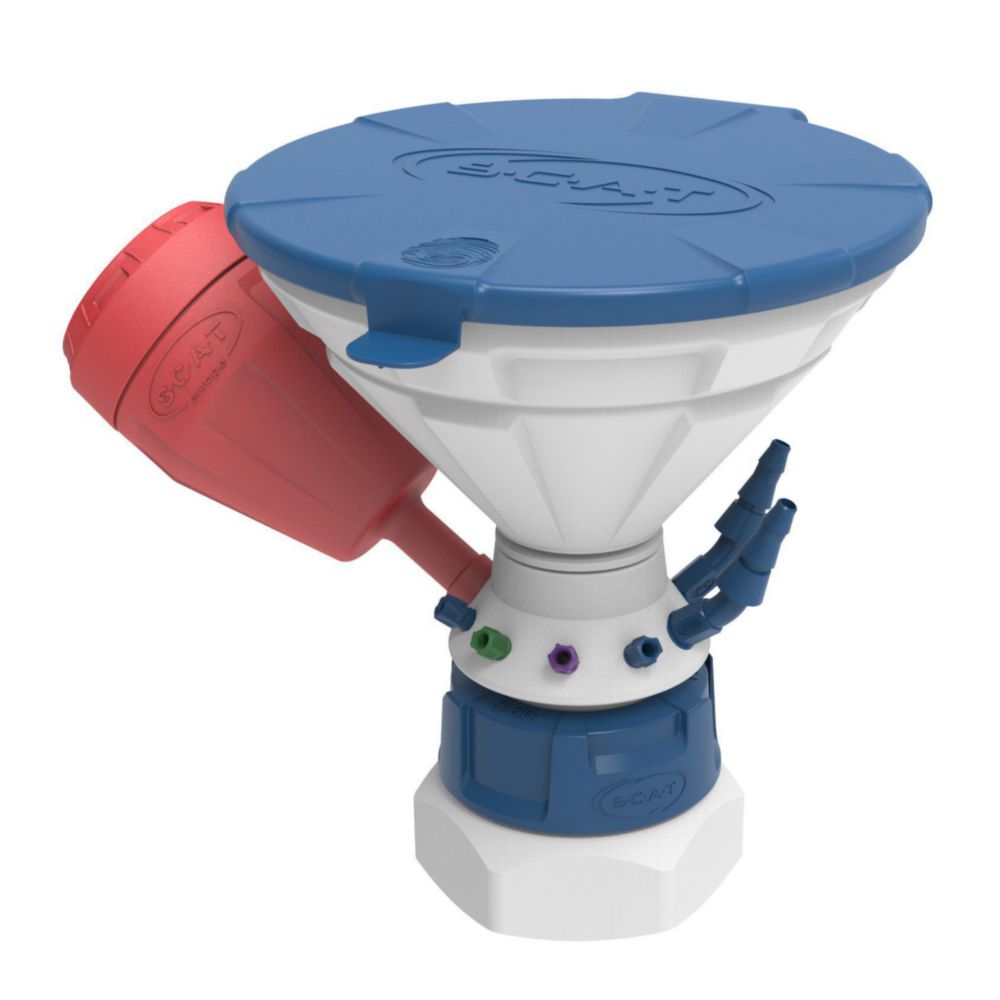

The Universal Waste Hub can dispose solvent waste from HPLC units and other waste liquids safely and without smelling. It consists of a funnel with hinged lid on a SafetyWasteCap with exhaust air filter, hose olives (PP) for tubing I.D. 5 to 11.5 mm and capillary connections.
- Funnel with sealing ring
- Removable sieve
Scope of supply: Safety funnel, 3 hose olives (NPT 1/8″), 3 blind fittings (NPT 1/8″), fittings: 4 x 1.6 mm, 4 x 2.3 mm, 4 x 3.2 mm, 4 x blind fittings (UNF 1/4″), 1 x blind fitting GL 14, exhaust filter size M
Toote variatsioonid
| Description | Thread | Connections | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|
| with adapter | B 63 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 936 | 1.00 | ||
| with adapter | S 90 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 939 | 1.00 | ||
| with adapter | S 65 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 937 | 1.00 | ||
| with adapter | B 83 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 938 | 1.00 | ||
| with adapter | S 50 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 942 | 1.00 | ||
| with adapter | S 95 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 940 | 1.00 | ||
| with adapter | S 51 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 943 | 1.00 | ||
| without adapter | GL 45 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 941 | 1.00 | ||
| with adapter | B 53 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 944 | 1.00 | ||
| without adapter | S 55 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 945 | 1.00 | ||
| without adapter | S 60/61 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 946 | 1.00 | ||
| with adapter | S 70/71 | 4 x capillary connections, 3 x hose connections, 1 x GL 14 | 4.680 947 | 1.00 |
