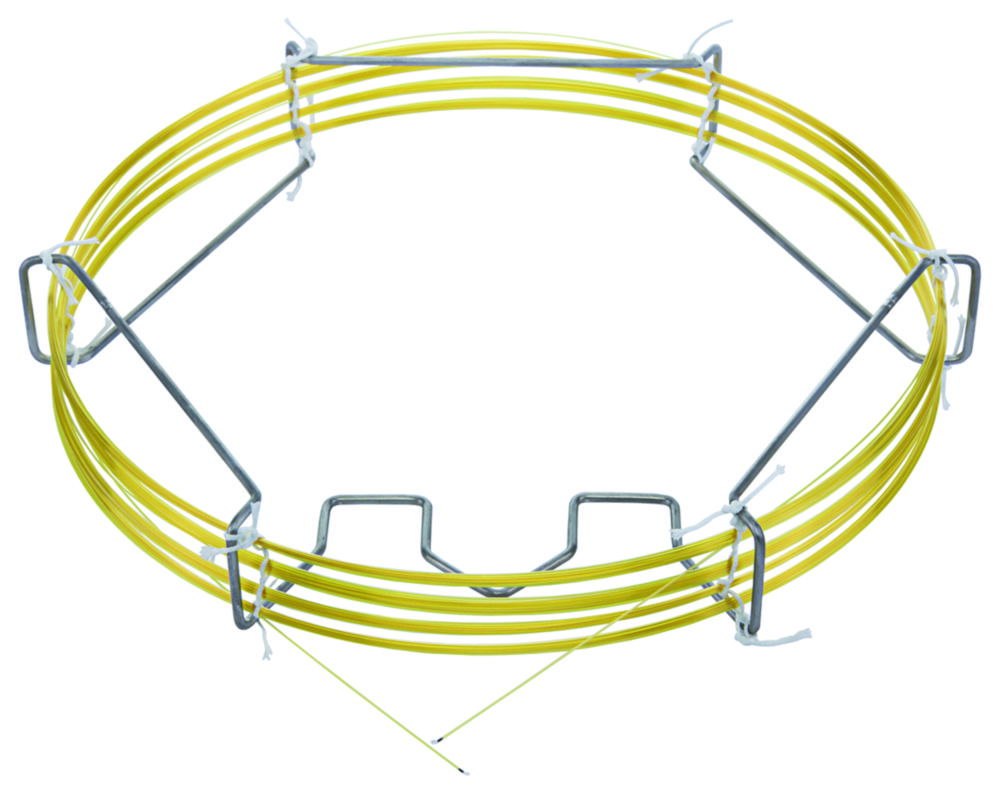

OPTIMA® 5 MS Accent capillary columns for GC
silarylene phase
- With polarity similar to a 5 % diphenyl -95 % dimethylpolysiloxane phase.
- USP G27, G36
- Lowest column bleed, nonpolar phase, ideal for ion trap and quadrupol MS detectors solvent rinsing for removal of impurities applicable
- Application areas: all-round phase for environmental analyses, trace analyses, EPA methods, pesticides, PCB, food and drug analyses
similar phases: DB-5 MS, HP-5 MS, Ultra-2, Equity-5, CP-Sil 8 CB low bleed/MS, Rtx-5SIL-MS, Rtx-5 MS, 007-5 MS, BPX5, MDN-5S, AT-5 MS, VF-5 MS
Max. temperature for isothermal operation: 340 °C,
Max. temperature for short isotherms in a temperature programme: 360 °C
for cloumns with film thicknesses > 5.5 µm the max. temperatures are 320 and 340 °C
Toote variatsioonid
| Length m | Int. diam. mm | Film thickness µm | Outer diam. mm | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| 30 | 0.25 | 0.25 | 0.4 | 4.003 017 | 1.00 | ||
| 30 | 0.25 | 0.50 | 0.4 | 4.003 019 | 1.00 | ||
| 60 | 0.25 | 0.25 | 0.4 | 4.003 018 | 1.00 | ||
| 60 | 0.32 | 1.00 | 0.5 | 4.003 012 | 1.00 | ||
| 60 | 0.32 | 0.25 | 0.5 | 4.003 010 | 1.00 | ||
| 25 | 0.32 | 1.00 | 0.5 | 4.003 011 | 1.00 | ||
| 30 | 0.25 | 1.00 | 0.4 | 4.003 021 | 1.00 | ||
| 30 | 0.32 | 0.25 | 0.5 | 4.003 009 | 1.00 | ||
| 60 | 0.25 | 0.50 | 0.4 | 4.003 020 | 1.00 | ||
| 60 | 0.25 | 1.00 | 0.4 | 4.003 022 | 1.00 | ||
| 30 | 0.32 | 0.50 | 0.5 | 4.003 013 | 1.00 |
