Silgur unmodified standard silica layers with concentrating zone
Glass plates. Silica 60, specific surface (BET) ~ 500 m2/g, mean pore size 60 Ä, specific pore volume 0.75 ml/g.
Kieselguhr zone for rapid sample application: because kieselguhr is completely inert towards a large number of compounds, the samples always from a narrow band at the interface of the two adsorbents, irrespective of shape, size or position of the spots in the concentrating zone. Separation then takes place in
the silica layer.

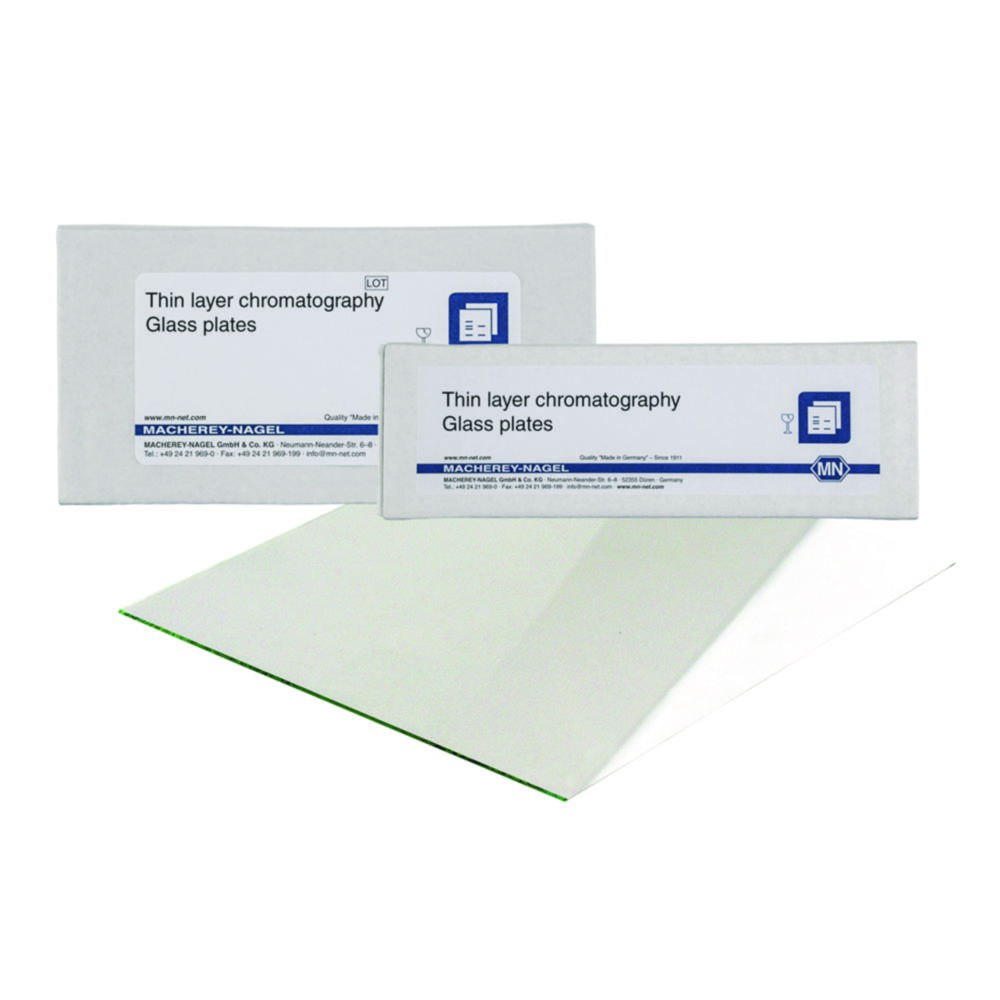

Available as glass plates with or without fluorescent indicator (UV254).
Toote variatsioonid
| Catalog number | PK | Dimensions (WxL) | Film thickness | Length | Material | Particle size | Type | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| 4.004 856 | 50.00 | 100 x 200 mm | 250 µm | 200 mm | Glass | 5...17 µm | SILGUR-25 | 100 mm | ||
| 4.004 857 | 50.00 | 100 x 200 mm | 250 µm | 200 mm | Glass | 5...17 µm | SILGUR-25 UV254 | 100 mm | ||
| 7.400 306 | 25.00 | 200 x 200 mm | 250 µm | 200 mm | Glass | 5...17 µm | SILGUR-25 UV254 | 200 mm | ||
| 6.093 869 | 25.00 | 200 x 200 mm | 250 µm | 200 mm | Glass | 5...17 µm | SILGUR-25 | 200 mm |
